ZX-HM Insulator Non-soluble deposit density Tester
● Adjustable air inlet to control the temperature and gas discharge
in the box.
● The measurement can choose multiple modes.
● The blast drying adopts German technology and advanced air duct;
the fan has low noise and stable performance.
This is a complete set of measuring equipment, which contains
electronic balance, air blast drying device, vacuum filtration
device, and accessories. The whole set of device is simple and
accurate.
Features

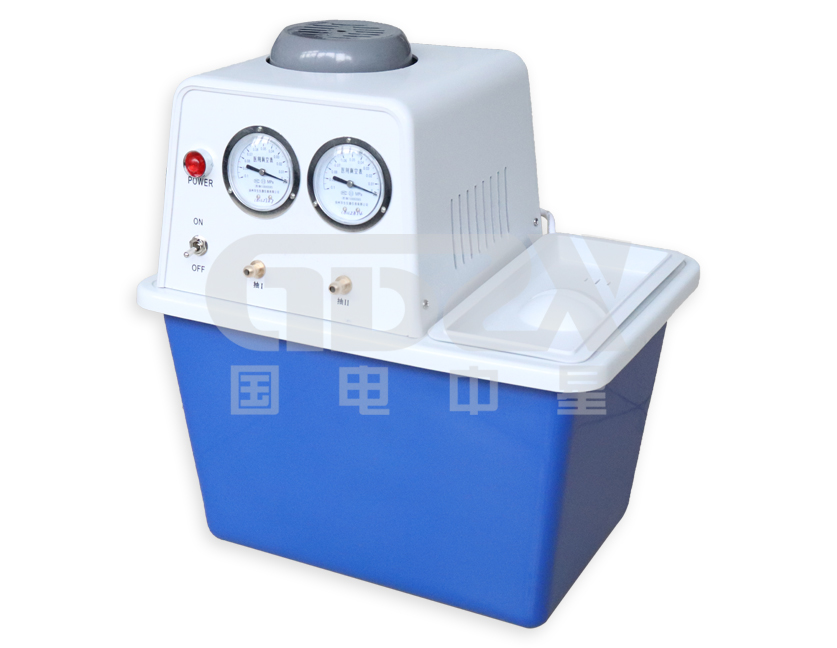

1. The vacuum filtering device has the advantages of mature
technology, convenient use and high efficiency. It contains a
number of taps, can realize a number of filtering process. The use
of water circulation device to replace the oil circulation pump
make it more convenient with low failure rate

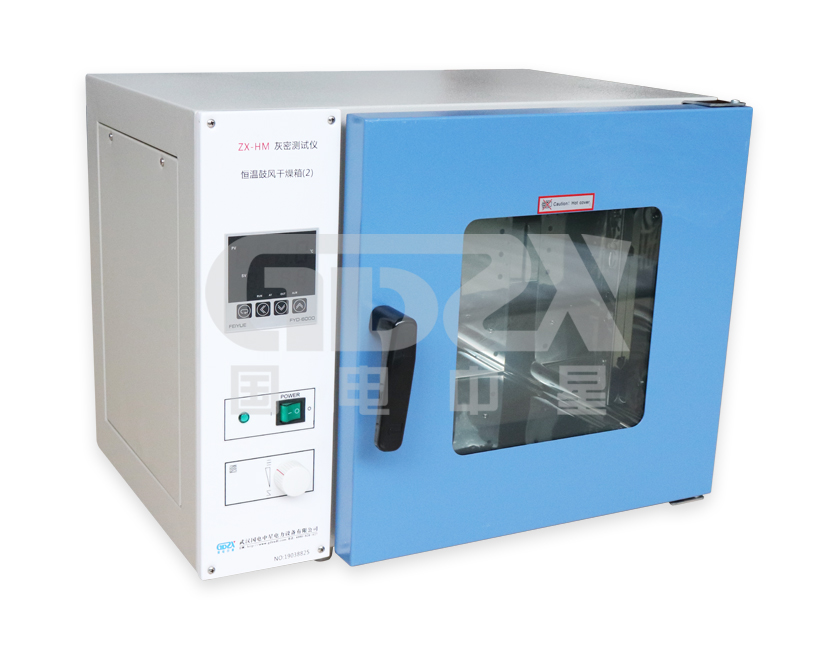

2. The air blast drying device adopts German technology, the air
duct is advanced, the fan noise is small, the performance is
stable;
3. Microcomputer High precision intelligent control. Once set the
temperature, it self judge the heating power and display heating
state.
4. Adjustable air inlet for temperature control and gas emissions.
5. digital electronic balance has correction function,
self-checking function, and multiple modes.
Technical Indicators
| Balance precision | 0.1mg |
| Maximum weighing | 200g |
| Temperature range | room temperature +10℃～250℃ |
| Temperature resolution | 1℃ |
| Temperature fluctuation degree | ±1℃ |
| Temperature uniformity | ±1℃ |
| Filtration flow | L/Min:60 |
| The maximum degree of vacuum filtration | MPa:0.098 |
| Single head exhaust air filtration | L/min:10 |
| The number of air filtration head | 2 pcs |
| Supply voltage | 220±10% |
| Ambient temperature | 5-40℃ |
| Relative humidity | 85% |
