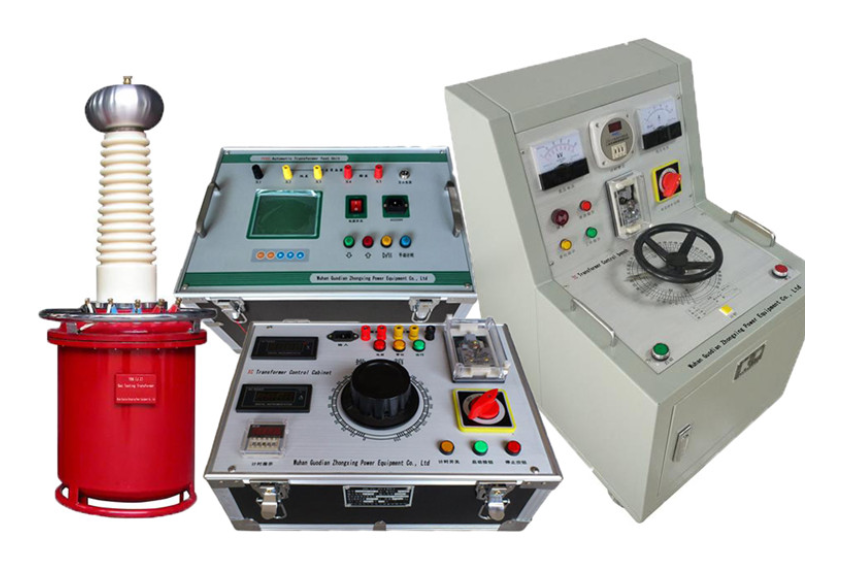

    50--200kV Gas Inflated Testing Transformer High Voltage Test Equipment DC Hipot Tester

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : YDQ
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : 400---5000USD/PCS
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 5--7days
    • Product Details
    • Company Profile

    50--200kV Gas Inflated Testing Transformer High Voltage Test Equipment DC Hipot Tester

    50--200kV Gas Inflated Testing Transformer High Voltage Test Equipment DC Hipot Tester

    This device incorporates the most advanced SF6 gas application technique to test the insulation performance for all kinds of electric equipment and especially suitable for field work.

    Features:

    Portable, small in size, light in weight (40% -65 % lighter than the same level of oil type)

    Clean, no oil pollution, no maintenance

    Unaffected by climate, on site testing without standstill

    The dielectric strength is significantly higher than the oil type, little corona

    Parameter

    1. Voltage class: 10kV~600kV

    2. Capacity range: 1~600KVA

    3. No-load current: < 7%

    4. Impedance voltage: < 8%

    5. Rated Voltage partial discharge: <5PC


    ModelCapacityLow voltage sideHigh voltage sideViarance6 minImpedanceNo loadWeightDimension
    kVAVoltageCurrentVoltageCurrentTemp.upVoltageCurrentL*W*H
    VAkVmA%%kgmm*mm*mm
    YDQ-1.5/501.52007.550305005010<430200*275*640
    YDQ-3/5032001550605005010<435240*300*690
    YDQ-6/50620030501205005010<440250*355*710
    YDQ-10/501020050502005005010<460260*375*750
    YDQ-15/501540037.550300500508<470270*420*800
    YDQ-20/50204005050400500508<485285*440*820
    YDQ-30/50304007550600500508<4100295*386*840
    YDQ-50/5050400125501000500508<4120320*416*910
    YDQ-6/100620030100601000509<465330*330*1200
    YDQ-10/100102005010010010005010<465350*475*1300
    YDQ-15/1001540037.51001501000508<485510*390*1320
    YDQ-20/10020400501002001000508<4100540*400*1340
    YDQ-30/10030400751003001000508<4110560*410*1360
    YDQ-50/100504001251005001000508<4125600*460*1410
    YDQ-10/150102005010066.715005010<490265*380*1750
    YDQ-15/1501540037.51501001500508<4100510*390*1800
    YDQ-20/1503040050150133.31500508<4110540*415*1800
    YDQ-30/15030400751502001500508<4125560*430*1800
    YDQ-50/15050400125150333.31500508<4140640*490*1850
    YDQ-20/20020400502001002000509<4140600*600*1700
