    AC DC High Voltage Divider,Digital AC DC HV Divider 50KV-300KV

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : FRC
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : $500.00 - $1,200.00 / Sets
    Supply Ability : 600 Case/Cases per Year
    Delivery Time : 8-15 work days
    • Product Details
    • Company Profile

    AC DC High Voltage Divider,Digital AC DC HV Divider 50KV-300KV

    50kV 100kV 300kV Resistive-capacitive High Voltage Test Equipment HV Divider


    Product Introduction:

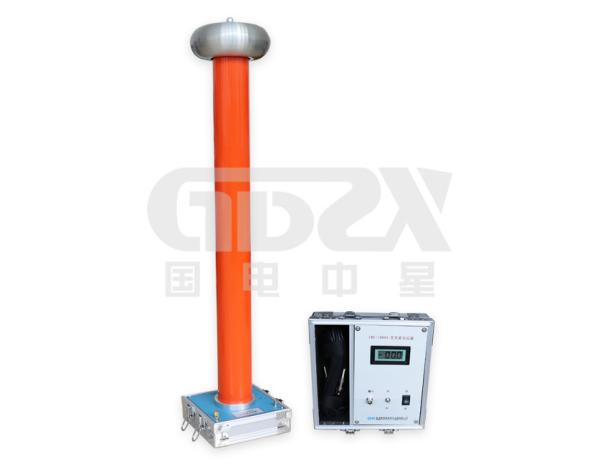

    AC / DC voltage divider is a special instrument for field measurement. It can measure both DC high voltage and AC high voltage. The whole device consists of voltage divider and measuring instrument. The voltage divider adopts a balanced equipotential shielding structure and uses excellent electronic components inside a completely sealed insulation cylinder, which makes the entire device have the characteristics of accurate testing, good linearity, stable performance, reasonable structure, easy to carry, simple operation, and intuitive display Therefore, it is the ideal instrument for field measurement.


    FRC AC/DC HV Divider is on-site instrument, which test both AC and DC voltage.

    It consist of voltage divider and LCD display measurement meter


    Features:


    Balance type equal potential shield structure.

    Fully-sealed insulation cylinder with internal excellent components.

    High accuracy and linearity, good stability and anti-interference ability.

    Small size, light weight, easy to carry in the field work


    Technique parameter:


    Voltage Grade (kV)AC/DC50kVAC/DC100kVAC/DC150kVAC/DC300kV
    Voltage division ratio1000:11000:11000:11000:1
    Impedance200MΩ400MΩ600MΩ1200MΩ
    Work Environment0~40℃, humidity:≤85%RH
    Volume(mm3)170×170×600170×170×800170×170×1100220×220×2100
    Weight(kg)10152036

    Measurement and Weight:


    Voltage GradeAC/DC50kVAC/DC100kVAC/DC150kVAC/DC300kV
    Volume(mm3)170×170×600170×170×800170×170×1100220×220×2100
    Weight(kg)101520

    36

    Work Environment: temperature:0~40℃, humidity:≤85%RH




    What problems should we pay attention to when using AC / DC voltage divider?


    In actual work, electric power engineering companies often need to perform DC and AC high-voltage test work. Therefore, AC and DC voltage dividers are required. During the use of this equipment, there are many problems that need attention. Here is a brief introduction for you.


    1. In use, there must be no foreign matter within 2 meters around the voltage divider below 50kV (150kV-200kV voltage divider is 3 meters, 300kV voltage divider is 4 meters) and voltage divider, personnel should The operating procedure of the digital high pressure meter in the industry standard determines the distance .. Our company recommends maintaining a safe operating distance of at least 5-6m. Adhere to the principle, gently, never collide, squeeze, etc. Testing has brought great convenience.
    2. The AC voltage divider should be placed in dry air and put back into the aluminum alloy box after use to prevent moisture.
    3. When you hear a more pronounced discharge sound, the AC voltage divider may get wet and allow the blower to blow for 1-2 minutes.



    Our Competitive Advantages:


    1: FACTORY DIRECT PRICE.
    2: NICE QUALITY.
    3: QUICK SHIPPING WITHIN 15 DAYS.

    4: SMALL ORDER WELCOME..

    5: ONLINE PAYMENT.

    6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

    7: AFTER SALES SERVICES 24/7


    Packaging & Delivery

    1. Delivery within 8-15 work days
    2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
    3.Experienced and professional logistic agent .
