    Auto Testing High Voltage Test Equipment Dry Type Time Relay On - Off Condition

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : GTB
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : $1043.47-6463.76
    Supply Ability : 1500sets/ year
    Delivery Time : 8-10work days
    • Product Details
    • Company Profile

    Auto Testing High Voltage Test Equipment Dry Type Time Relay On - Off Condition

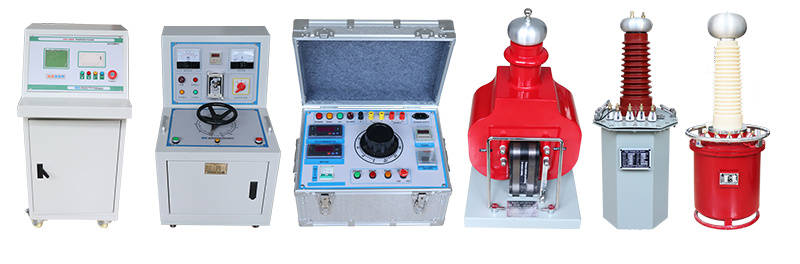

    Auto High Voltage Dry type Testing Transformer

    Hipot Test Equipment


    1. output voltage waveform: sine wave
    2. output waveform distortion rate: ≤ 1%
    3. no-load loss: 0.2% ~ 0.35%
    4. induced voltage level: 1.1 rated voltage /1min
    5. short-circuit impedance of single one test transformer is 4.5%~12% (+ 10%).
    6. voltage regulation precision is: 1%
    7. voltage instability: < 1%
    8. overvoltage protection function.
    9. surface temperature rise: <55℃
    10. rated capacity, allow continuous operation time:0.5 hours
    11. long time running transformer can be customized
    12. interrupted running time: <10kVA, 2 hours interval, continuous 0.5 hours.
    13. interrupted running time: <15kVA, 4 hours interval, continuous 0.5 hours.
    14. running continuously for 4 hours allowed under half rated voltage & half rated current

    Model sereis :


    ModelCAPInput (V)Output(kV)OutputOutputMax Size(mm)Weight
    (kVA)(mA)DC (kV)(kg)
    GTB-1.5/501.5200 (400)503070250×180×37013
    GTB-3/50360330×270×55030
    GTB-5/505100400×330×67047
    GTB-6/506120400×330×67047
    GTB-10/5010200430×370×75068
    GTB-20/1020200 (100)102000/470×370×75083
    GTB-20/5020200 (400)10040070470×370×75085
    GTB-30/5030600520×410×780120
    GTB-5/100550140430×370×110066
    GTB-10/10010100470×370×110077
    GTB-20/10020200520×410×1050120
    GTB-30/10030300600×140×1050160
    GTB-50/10050500650×460×1010230
