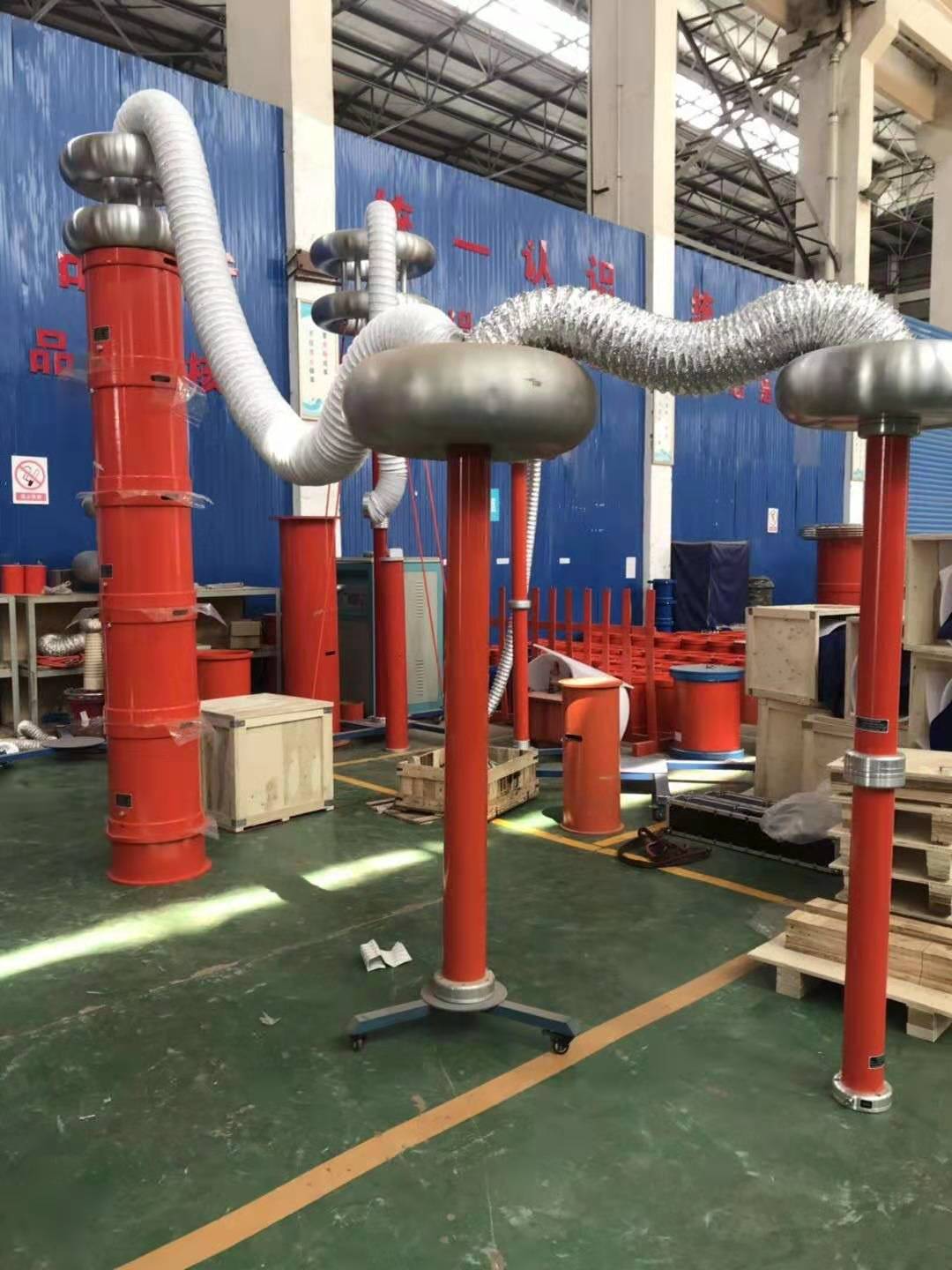

    Power Cable High Voltage Resonant Test System Long Distance High Capacitance

    Long distance High Capacitance Power Cable Voltage Resonant Test System


    Product Description:


    The AC Resonant Test System for Cables are composed of frequency and voltage modulated power source, exciting transformer, reactor, capacitance bleeder.


    Features


    3 modes: auto search resonance point, auto search resonance point & auto boost, manual test
    Small size, light weight, portable design.
    220V or 380V input power supply
    Dry type epoxy cast for reactor, nice and reliable.


    Technique Parameter:


    Rated output voltage: 0 - 220kV, output frequency: 30 -300Hz.
    Resonant voltage waveform: sine wave, THD ≤ 1%.
    Full load working time: continuous working time 60mins. Quality factor: 30~90.
    Frequency adjustment: fineness 0.1Hz, instability ≤ 0.05%.
    Power supply: 220V/380V±15%,50Hz±5%

    Configuration table of cable (≤ 35kV) voltage withstand device
    ModelPower SourceReactorExcitation transformer (dry type)DividerApplication
    ZXBXZ-44/222.5kW1A/22kV:2 sets2.5kVA/1kV25kV10kVcable≤1km
    ZXBXZ-88/224kW2A/22kV:2 sets4kVA/1kV25kV10kVcable≤2km
    ZXBXZ-132/226kW2A/22kV:3 sets6kVA/1/3kV70kV10kVcable≤3km 35kVcable≤1km
    ZXBXZ-176/227.5kW2A/22kV:4 sets7.5kVA/1/3kV60kV10kVcable≤4km 35kVcable≤1km
    ZXBXZ-264/2210kW2A/22kV:6 sets10kVA/1/3kV60kV10kVcable≤6km 35kVcable≤2km
    ZXBXZ-330/2215kW2.5A/22kV:6 sets15kVA/1kV100kV10kVcable≤8km 35kVcable≤2km
    ZXBXZ-640/3225kW2.5A/32kV:8 sets25kVA/1/3/5kV200kV10kVcable≤10km 35kVcable≤4km 110kVcable≤1km
    Configuration table of cable (≥110kV) voltage withstand device
    ModelPower SourceReactorExcitation transformer (oil-immersed type)DividerApplication
    ZXBXZ-1300/13050kW5A/130kV:2 sets50kVA/3/5kV150kV35kVcable≤2km 110kVcable≤2km
    ZXBXZ-2600/130100kW5A/130kV:4 sets100kVA/3/5/10kV220kV35kVcable≤3km 110kVcable≤3km 220kVcable≤1.5km
    ZXBXZ-3200/220160kW4A/220kV:4 sets160kVA/5/10kV160kV110kVcable≤5km 220kVcable≤3km
    ZXBXZ-6400/220320kW8A/220kV:4 sets320kVA/5/10kV320kV110kVcable≤10km 220kVcable≤5km 500kVcable≤1km

    Provide technical proposal according to your requirements !




    Operation video : https://youtu.be/HS-PlQd1T94
