ZX2671 Insulation Resistance Test Set
Product introduction
ZX2671 Insulation Resistance Test Set is a high performance digital type instrument, with LCD large
screen with backlight display, data hold, automatic discharge,
automatic shutdown and other functions. The instrument has the
functions of test timing and voltage monitoring. When the loop
voltage is higher than 36V, the instrument will forbid tested to
protect the safety of the tested objects and personnel. Insulation
resistance value, test time, output voltage display with the same
screen, also have the functions of measuring AC voltage, DC
voltage. This series instrument maximum output voltage 5000V, the
biggest test resistance value 400GΩ, maximum short-circuit current
2mA.
Features
1.Complete appliance is beautiful, wide range, high precision, high
resolution, easy to operate, convenient to carry, accurate and
reliable, stable performance, strong anti-interference ability.
2. the shockproof, dustproof, moisture-proof structure, which is
the telecommunication, the electric power, the meteorology, the
computer room, the oil field, the mechanical and electrical
installation and the maintenance and uses the electric power as the
industrial power or the energy industry enterprise department
commonly used but essential instrument.
3.It is suitable for measuring the resistance of various insulating
materials and the insulation resistance of transformers, motors,
cables and electrical equipment.
Technical Indicators
| Function | Insulation resistance test, AC/DC voltage test |
| Power Supply | DC 1.5V LR14X6PCS dry battery continues stand by above 100h |
| Rated Voltage | 50V;250V;500V;1000V;2500V |
| Insulation Resistance Range | 0.1MΩ～200GΩ |
| Voltage Range | AC/DC 0V～750V |
| Output Shout Circuit Current | ≥2mA |
| Max Capacitive Load | 1uF |
| Shift | Turn the shift rotary knob to select the appropriate gear |
| Backlight | Controllable off-white backlight, suitable for dark places |
| Display Mode | 4 digital LCD display, contrast clear |
| Measurement indication | LED flicker and buzzer ring in measurement |
| LCD Size | 108mm*65mm |
| Meter Dimension | 212mm*175mm*76mm |

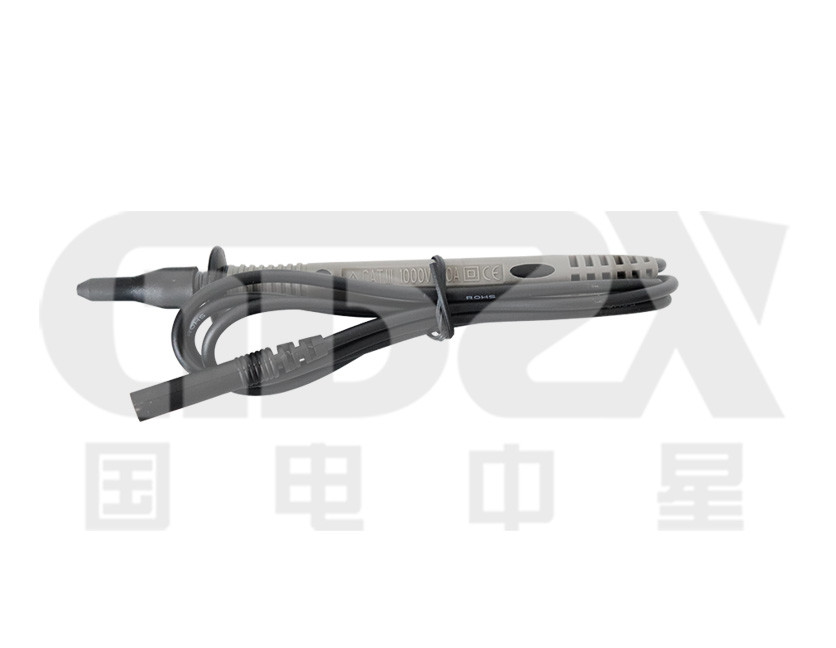

| Test Wires | High voltage bar test wire: Red 1PCS； Probe test wire: Black
1PCS；Alligator clip test wire:1PCS；Alligator clip:1PCS |
| Test Time | The single test time is 1 min. During the test, the user can stop
automatically or automatically stop after 1 min, and the screen
display measurement data |
| Battery Voltage | Battery voltage symbol display, when battery voltage is low will
remind to replace the battery in time |
| Automatic Discharge | Automatic release the voltage of the measured object, During
discharging, symbol flash. Discharge completion symbol extinguish |
| Auto Shutdown | 15 minutes after boot up, the meter shuts down automatically
without any operation |
| Power Consumption | Standby: about 40mA(backlight off)；Start up with backlight:about
50mA；Measurement:about 100mA(backlight off) |
| Weight | 1230g |
| Working Temperature and Humidity | -10℃~40℃；below 80%rh |
| Storage Temperature and Humidity | -20℃~60℃；below 70%rh |
| Suitable Safety Standard | IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution 2) |

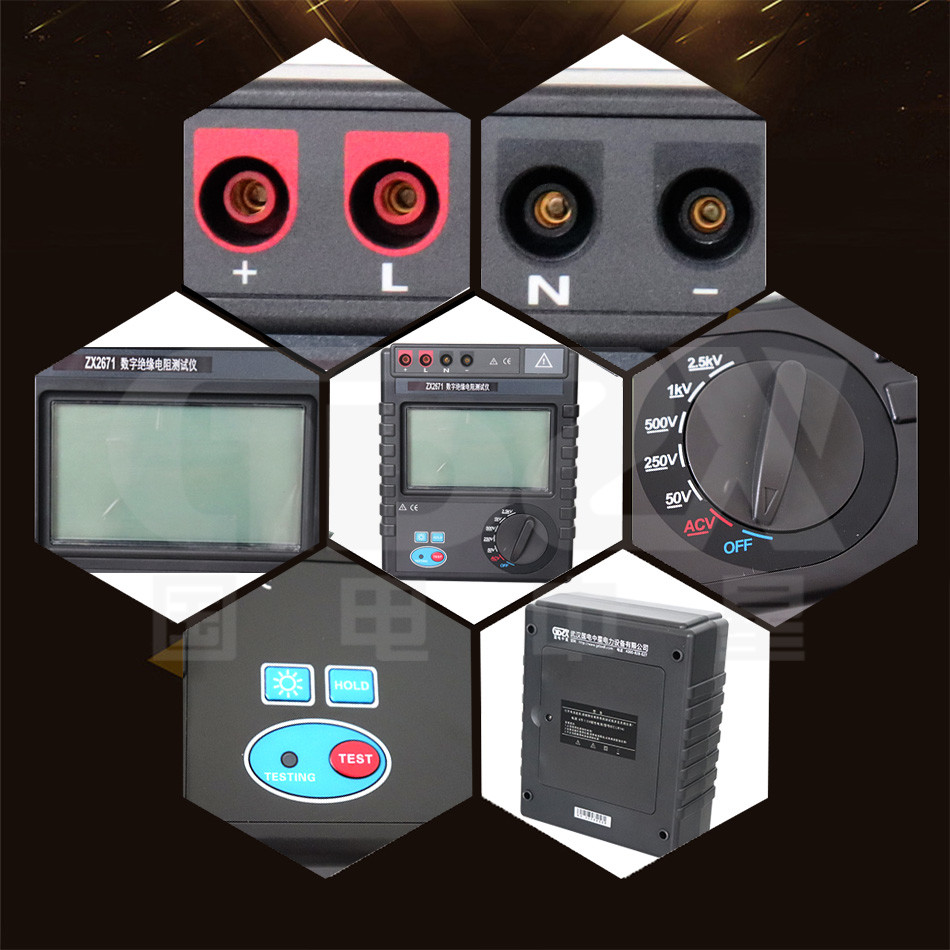

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
