    Zinc Oxide Lightning Arrester Test Equipment , MOA Energized Test Equipment

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZXBLQ-IV
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : $2820-$3820/SETS
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    Zinc Oxide Lightning Arrester Test Equipment , MOA Energized Test Equipment

    PLEASE NOTE :

    Dry type Testing Transformer ,Hipot Transformer Control Unit

    Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

    1: FACTORY DIRECT PRICE.
    2: NICE QUALITY.
    3: QUICK SHIPPING WITHIN 15 DAYS.
    4: SMALL ORDER WELCOME..
    5: ONLINE PAYMENT.
    6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.
    7: AFTER SALES SERVICES 24/7


    High quality Zinc Oxide Arrester MOA Energized Test Equipment

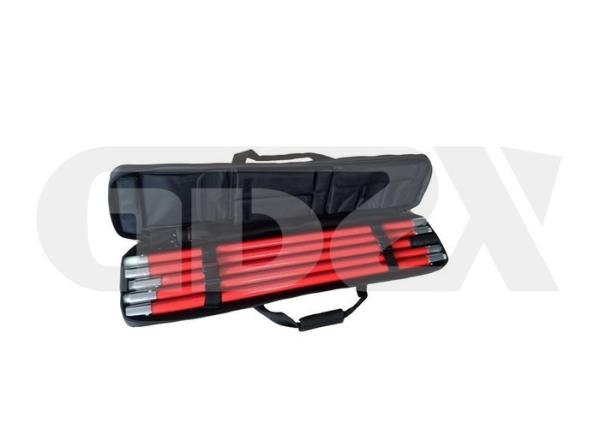

    This instrument use high accuracy (1uA) leakage test and updated CT shielding technology. It is composed of special HV detector, and HV insulation rod. It can wireless transmit testing data within distance of 30m.

    Technical Parameters

    Function

    Leakage current test to find probable inner moisture or aging defects
    Power supplyDC 6V Alkaline battery(1.5V AAA×4)
    Test methodClip CT, by integral approach
    Transmit433MHz wireless transmission, distance within 30m
    Display mode4 digital LCD display, can be used in dark places
    LCD size47×28.5mm
    Instrument sizeHV detector: 68×245×40mm
    Receiver: 75×170×30mm
    Clip sizeφ33mm
    Sampling speed2/s
    Measurement rangeAC 0.000mA~30.00mA(50/60Hz automatically)
    Resolution1uA
    ShiftAC 0.000mA~30.00mA shift automatically
    Accuracy±2%±5dgt (23℃±5℃ below 80%RH)
    Storage99 groups, “MEM” means direction, "FULL" means storage is full
    Data holdPress HOLD button to hold the data, and press it again to cancel it
    Data checking"MR" button can read the stored data up and down
    Overflow“OL” means overflow of the range
    No signal"no- -"show that the receiver has not received the signal
    Auto offThis instrument will turn off automatically after 5min to save the batter energy
    Battery voltageWhen battery voltage is below 4.8V, will remind it is time to change the battery
    WeightDetector: 335g(with battery, total 2.5Kg (with battery and insulation rods)
    InterferenceNo 433MHz frequency signal interference
    Rod sizeφ32mm, 1m/pcs(5pcs)
    Insulation strengthSingle insulation rod: AC110kV/rms, the shell of the HV detector and the iron core: AC1000V/rms
    structureDrip-proof type II

    Should we can help you in price ,product types choosing ,video presentation.

    Pls feel free to contact me

    Your inquiry will be taken seriously .
