    Battery Power Underground Cable Fault Distance Locator Equipment Big Capacity

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZXPD3000
    Certification : ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Battery Power Underground Cable Fault Distance Locator Equipment Big Capacity

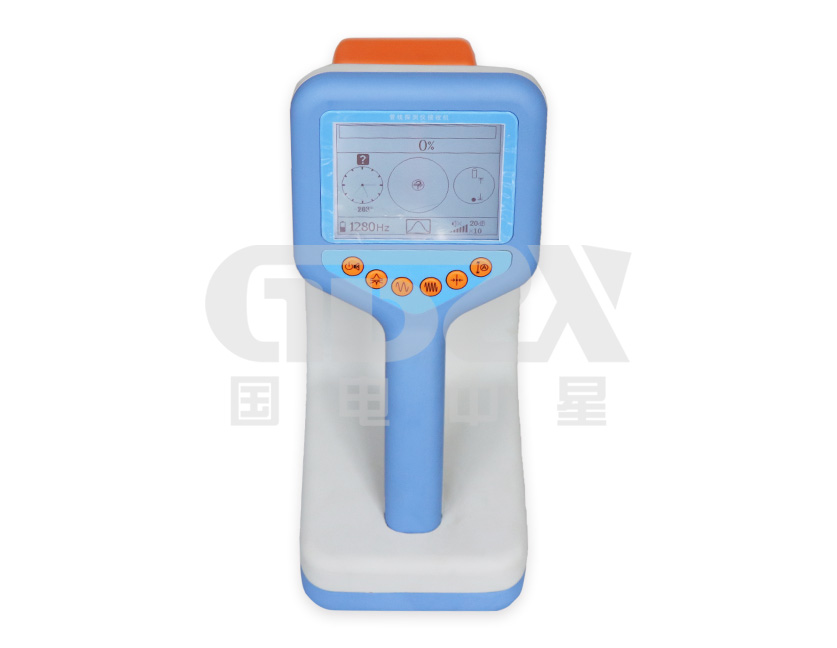

    ZXPD3000 Pipe Locating System


    This device is a high performance underground metallic pipe locating system.It consists a transmitter and a receiver, can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes.It can also be used to identify target cable from a bunch of cables,locate the pipe insulation damage and part type cable fault.


    FUNCTIONS

    • Compass display: to display pipe position directly.
    • Real-time depth measure and current measure.
    • History curve display: to display the signal variation directly.
    • Cable Identification: Clamp (optional) identification and sensor identification.
    • Grounding fault location: Use A frame (optional) to pinpoint pipe insulation damaged points against ground.
    • Digitization high accuracy sampling and processing,narrow receiving pass band to rise the anti-interference capability and suppress power interference and harmonic interference from nearby running cable and pipe.
    • Multiple locating frequency: active detection and passive detection.
    • Multiple signal output mode: Direct connection output, Clamp Coupling input, Radiation output.
    • Big capacity Li-on batteries series,support auto power off when low battery or long time no operation
    • Solid case and light weight easy to carry

    SPECIFICATION:

    Transmitter:

    • Output: Direct Connection output, Clamp Coupling Output (optional), Radiation output.
    • Output Frequency: 640Hz (complex frequency), 1280Hz (complex frequency), 10kHz, 33kHz, 83kHz.
    • Output power: max. 10W, 10 levels adjustable, auto impedance matching.
    • Direct connection voltage: max. 150Vpp.
    • Overload and short circuit protection.
    • HMI: 128X64 LCD.
    • Power supply: 4 X built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah.

    Receiver:

    • Input: Internal receiving loop, Clamp (optional), sensor (optional),fault locating A Frame (optional).
    • Receiving frequency:

    - Active frequency: 640Hz,1280Hz,10kHz,33kHz,83kHz

    - Power frequency: 50Hz/60Hz,250Hz/300Hz

    - Radiation frequency passive frequency: center frequency 10kHz, 33kHz, 83kHz

    • Pipe detection mode: wide peak method,narrow peak method,valley method
    • Cable identification mode: Receiving Clamp (optional) intelligent identification / sensor (optional) identification
    • HMI: 320X240 LCD
    • Built-in battery: 2 X 18650 Li-on batteries, standard 7.4V,3.4Ah

    Other:

    • Volume: transmitter 270x220x85mm,receiver 700x270x120mm
    • Weight: transmitter 2.2kgs, receiver 2.2kgs
    • Charger: input AC 100~240V,50/60Hz,output DC8.4V,2A
    • Temperature: -10-40℃,humidity 5-90%,elevation <4500m
