ZXFZ-H High Quality Large Screen LCD Generator Rotor AC Impedance Tester

Ask Lasest Price
Brand Name :	GDZX
Model Number :	ZXFZ-H
Certification :	ISO9001
Payment Terms :	L/C,T/T,Western Union,MoneyGram
Supply Ability :	1200Set/year
Delivery Time :	3-20 work day

Add to Cart

Product Details
Company Profile

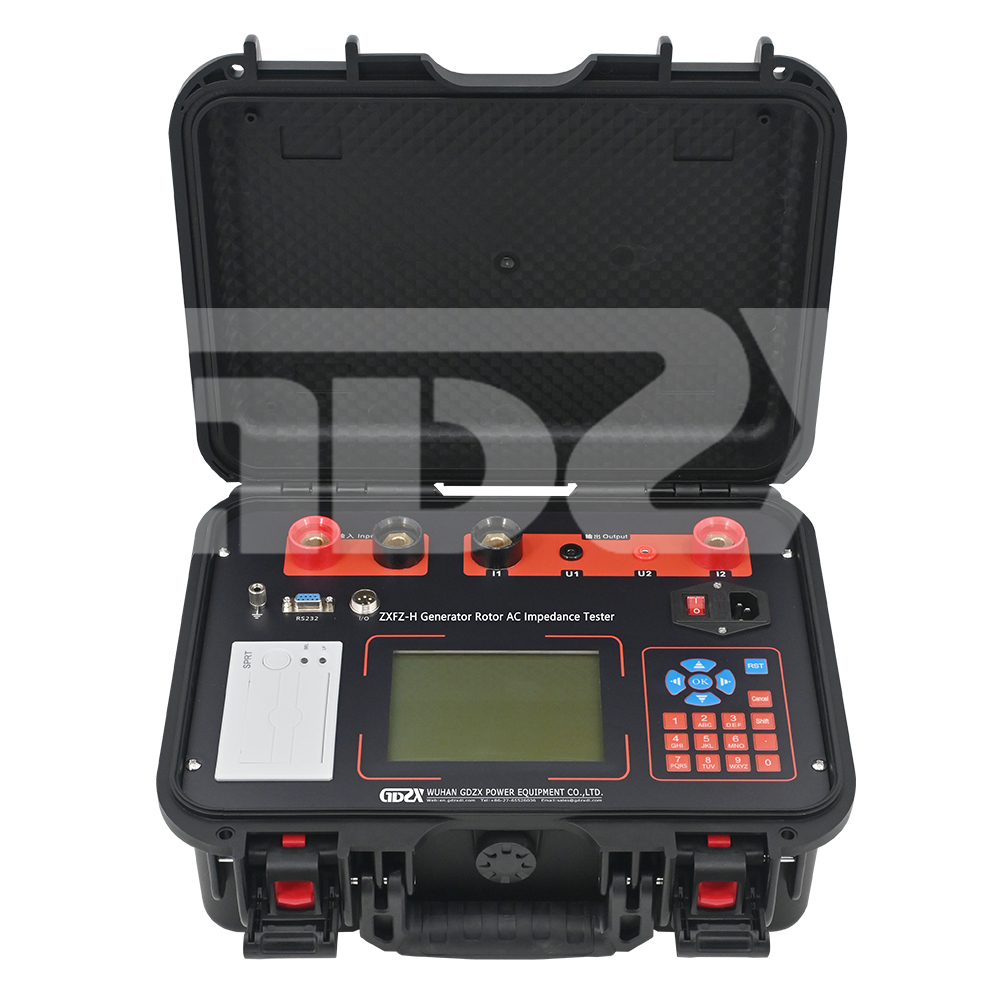

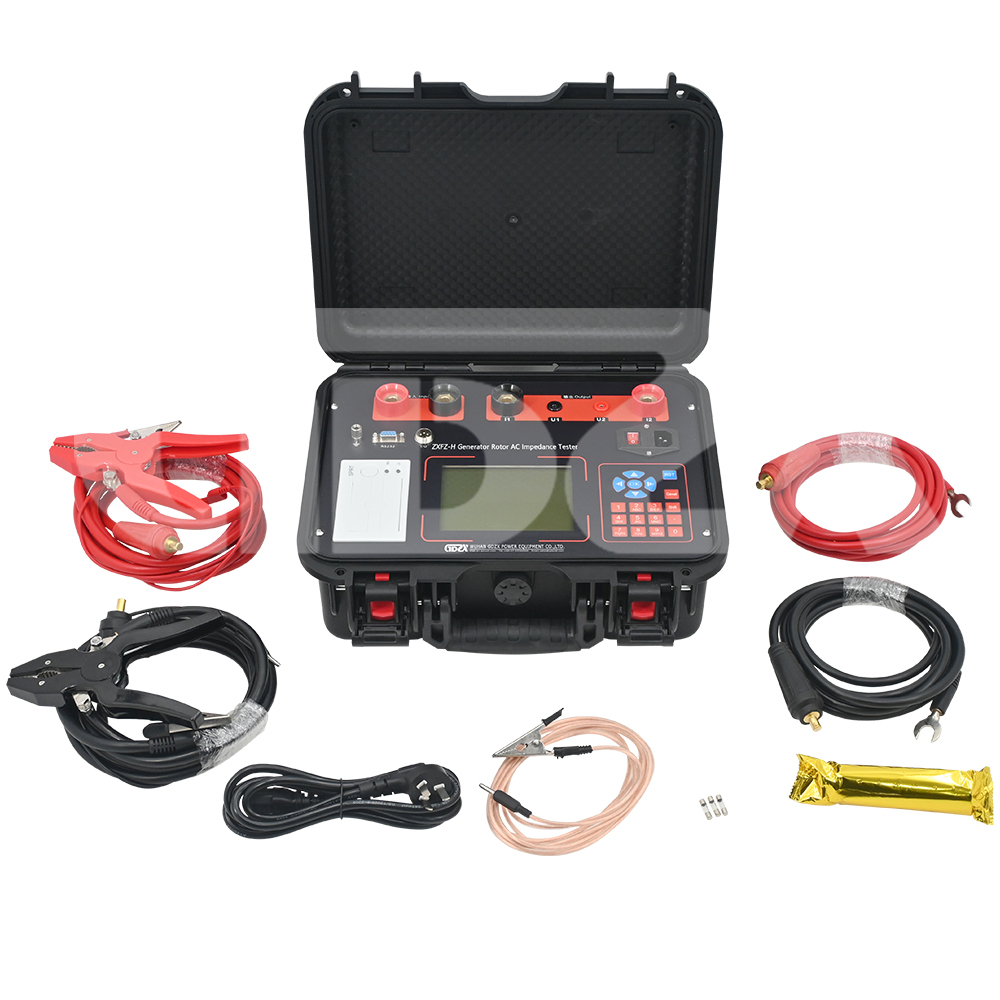

ZXFZ-H High Quality Large Screen LCD Generator Rotor AC Impedance Tester

Product Description

ZXFZ-H Generator Rotor Impedance Tester adopts the state-of-the-art high speed microprocessor technology with more powerful functions, preferable performances and more convenient use. The Tester has a series of characteristics such as high reliability, easy operation, high test precision, being compact and lightweight and etc., and currently is in the domestic leading level.

Features

1. Automatic acquisition, measuring, displaying, saving, printing of parameters and impedance characteristics curve (voltage, current, impedance, power, frequency, equipment Numbers, time, etc.).

2. Wide range, two measuring mode: automatically or manually

3. Built in large capacity memory, RS232 communication interface for uploading data to PC, offered software can be used to download data, generate and edit typical testing reports.

4. Perfect over-voltage, over-current protection function, and the device auto adjust protection value according to set testing parameters.

5. other functions: single-phase transformer no-load, short-circuit testing, CT/PT and arc suppressing coil volt-ampere characteristic testing

6. Large screen graphic LCD, cursor hint operation, and it auto resize curvilinear coordinates

7. With micro printer built in, testing report and curve can be printed out at any time

Technical Indicators

1. Working condition:

1) Temperature: -5℃~40℃

2) Relative humidity: <95%(25℃)

3) Altitude: <2500m

4) external disturbance: no extra-heavy shock, no extra-heavy electromagnetic field

5)Power supply: 160VAC~280VAC, 45Hz~55Hz

2. Performance:

1) Ac impedance 0 ~ 6kΩ 0.2 level

2) Ac voltage 0 ~ 600V 0.2 level

3) Ac current 0 ~ 120A 0.2 level

4) Active power 0 ~ 72kW 0.2 level

5) Frequency: 45 ~ 75Hz 0.2 level

6) Working power supply: 220V + 10% 50Hz

7) Dimension: 415*225*200 mm

8) Weight: 5 kg

3. Dielectric strength:

1) the insulating resistance of voltage, current input terminal to case≥100MOhm

2) the input terminal of the working power can stand 2kV (RMS) to case, time is 1 minute

Earth Insulation Tester

Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
