    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZX2677
    Certification : ISO9001
    Payment Terms : L/C,T/T
    Price : USD $719.00-$1256.00 /SET
    Supply Ability : 1200 Sets/Year
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test

    ZX2677 Digital Insulation Resistance Tester


    Product introduction


    ZX2677 Digital Insulation Resistance Tester also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring AC voltage absorption ratio and polarization index of DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability. Moreover, it has a shockproof, dustproof, moisture-proof structure and is a commonly used and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy.
    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test



    Features


    1.The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions.


    2.The function of measuring AC voltage absorption ratio and polarization index of DC voltage.


    3.Digital insulation resistance meter consists of medium and large scale integrated circuits.


    4. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels).


    5.Rated insulation test voltage range 100V ~ 5000V, insulation resistance measurement range 0.01MΩ ~ 2000GΩ.


    6.DC voltage measurement range 0 ~ 1000V, AC voltage measurement range 0 ~ 750V.


    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test



    Technical Indicators
    FunctionInsulation resistance test, voltage test
    Base conditions23°C±5°C,below 75%rh
    Rated voltage(V)100;250;500;1000;2500V;5000V
    Test Voltage(V)rated voltage×(1±10%)
    Insulation Resistance Range(GΩ)0.01MΩ~2000GΩ
    Insulation Resistance Resolution0.01MΩ
    DC Voltage Range0~1000V
    DC Voltage Range Resolution0.1V
    AC Voltage Range0~750V
    AC Voltage Range0.1V
    Output short-circuit Current≥5mA(5KV)
    Absorption Ratio and Polarization Index MeasurementHave
    Power Supply12.6V rechargeable battery
    BacklightControllable gray screen backlight, suitable for use in dim places
    Dispaly mode4-bit large LCD display, gray screen backlight
    LCD display size108mm×65mm
    Instrument sizeL/W/H:277.2mm×227.5mm×153mm
    USB interfaceWith USB interface, software monitoring, storage data can be uploaded to the computer, save and print
    Communication LineUSB communication line 1PC
    Test LineHigh voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter
    Data Storage500 groups, "FULL" symbol indicates that storage is full
    Data ReviewData review function: "MR" symbol display
    Overflow DisplayExceed measurement range overflow function: “OL ” symbol display
    Alarm FunctionAlarm when the measured value smaller than the alarm setting value
    Power ConsumptionStandby: 30mA Max(backlight off)
    Turn on backlight: 42mA Max
    Measure:300mA Max(backlight off)
    Instrument weight2720g(including battery)
    Battery voltageWhen the battery voltage is low, low battery symbol will display
    Automatic shut-downautomatic shutdown after 15 minutes boot
    Insulation Resistance≥50MΩ(between Measuring line and housing)
    Pressure ResistanceAC3kV/50Hz 1min
    Working Temperature and Humidity-10℃~+50℃<85%RH
    Storage Temperature and Humidity-15℃~+55℃<90%RH
    Suitable for Safety RegulationsIEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V

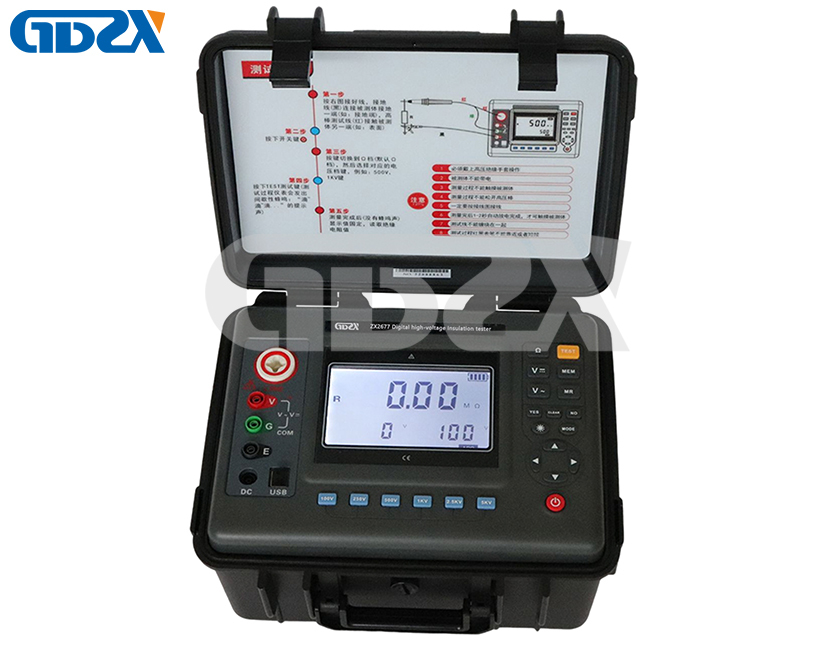

    Product pictures


    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test


    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test

    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test

    ZX2677 5KV 2000GΩ Digital Earth Insulation Tester Megger Meter With DC Current Test
