GDZX Electric Factory Price QJ57 Double Arm Kelvin DC Bridge For
Low Resistance Measuring
Product introduction
0.05 class 1111.1ΩDC Digital Kelvin Bridge
1 1 Uses: Model QJ57E is a portable accuracy DC double bridge with
Kelvin network ( hereinafter referred to as "Bridge"). The
instrument is provided with seven measuring ranges from 0 ~ 1.1111k
Ω and the minimum resolution is 0.01 u Ω . It is suitable for
accuracy measurement of low-value resistance or DC resistance in
the conductivity of metal conductor, DC current divider, the
contact resistance of switch, wire and cable, motors and
transformers, etc.
Features
The main resistance element of the bridge is made by high-grade alloy
material, and subjected to long-term high and low temperature aging
test, as well as rigid technological treatment and adjustment so as
to lower the temperature coefficient, increase the accuracy and
improve the annual stability. By adopting the specific switch in
Fang Ke accuracy instrument, the contact resistance of the bridge
is small and so does its variation; by using model JZ2B zero
indicator, the bridge features high sensitivity, low noise and less
power dissipation. Therefore, the portable bridge is characterized
by wide measurement range, high accuracy, well stability and
reliability, compact and lightweight
Technical Indicators
Specifications:
All technical indicators of Model QJ57E conform to the standard
IEC564 - 77" DC Bridge for Measuring Resistance".
1. Accuracy level: 0.05;
2. Environment condition: Temperature reference value: 20±1.5 C,
Nominal temperature usage range: 5 °C-35 °C . Relative humidity:
25% ~ 75%.
3. Total effective range: 0.0001Ω~1111.1Ω 4.Maximum resolution:
0.01μΩ Main parameters are shown in Table 1.
Table 1
| Multipe | Effective range | Resolution | Class index | Rn | Iman |
| x 10-3 | 0 -1.11110mΩ | 10n Ω | 2 | 1mΩ | 3A |
| x 10-2 | 0 -11.1110mΩ | 100n Ω | 0.2 | 10mΩ | 1A |
| x 10-1 | 0 -111.110mΩ | 1 µΩ | 0.05 | 100mΩ | 500 mA |
| x1 | 0 -1.1111Ω | 10 µΩ | 0.05 | 1 Ω | 100mA |
| x 10 | 0 -11,1110mΩ | 100 µΩ | 0.05 | 10 Ω | 15mA |
| x 102 | 0 -111.110mΩ | 1mΩ | 0.05 | 100 Ω | 1.5mA |
| x 103 | 0 -1.11110 kΩ | 10m Ω | 0.05 | 1kΩ | 200 µ A |

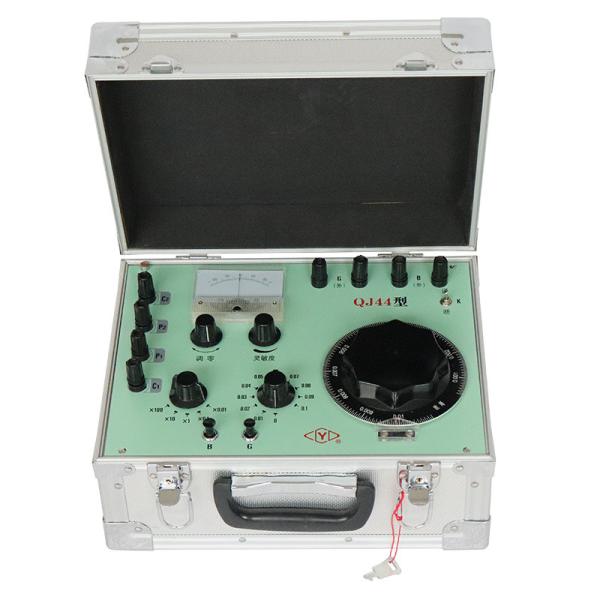

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
