High Voltage Test Equipment

For DC high voltage test Portable High Voltage DC Generator Test Equipment

ZGF Series DC High Voltage Generator is a new generation of portable High Voltage DC Generator based on the new standard of the Chinese electric power industry DL/T848.1-2004. Mainly used in electric power sector, mining, metallurgy, steel and other enterprises of the power sector to the zinc oxide lightning arrester, power cable, transformer, generator and other high voltage electrical equipment for DC voltage test.

1. Aluminum alloy carrying box.

2. With High Frequency Voltage-multiplying circuit, PWM technology and high power IGBT device.

3. Adopts voltage feedback, Higher voltage stability, smaller ripple coefficient.

4. Full range smooth voltage regulation, regulation accuracy≤1%, stability≤1%, voltage current error +/-1.5%±2d.

5. Raise voltage from zero voltage potentiometer.

6. The 75% UDC 1mA function button is convenient for Zinc Oxide Arrester test.

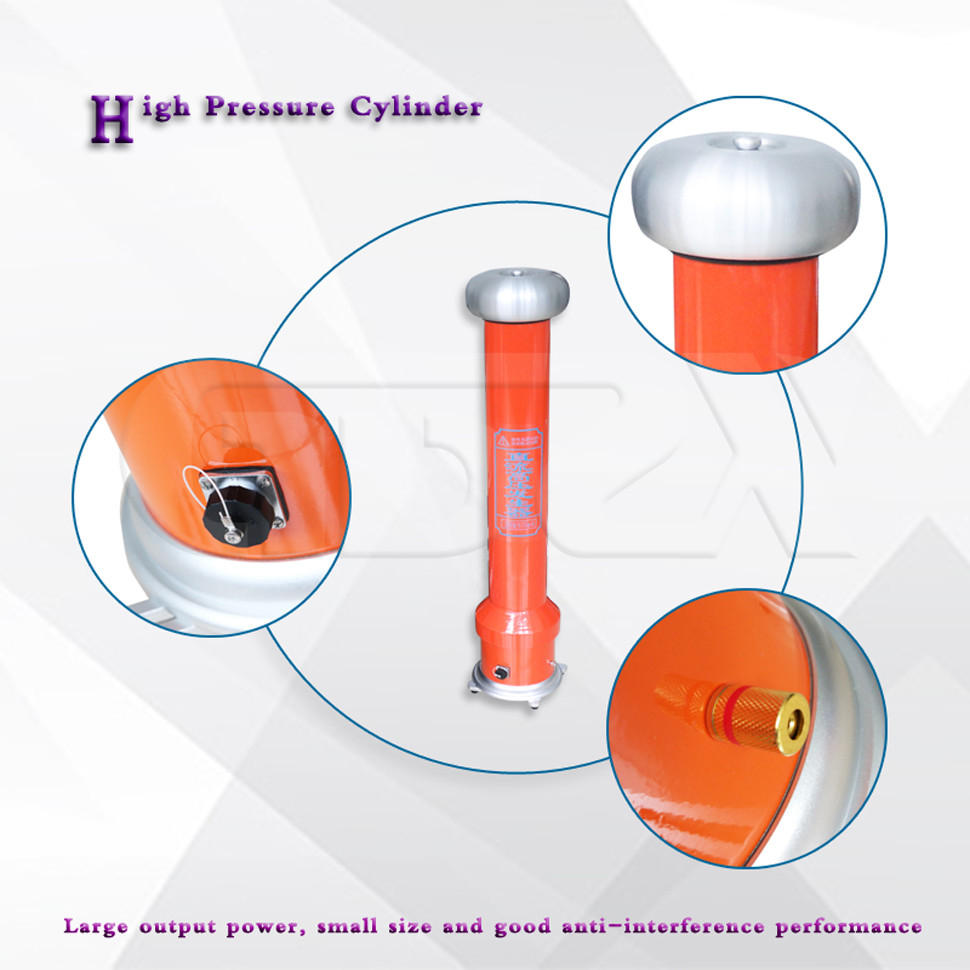

7. Over voltage cylinder uses dialing number set, and the error +/-2%.

8. It’s coated with special insulating materials with good electric performance and water resistance.

9. The product conform to DL/T848.1-2004 technology requirement, also passed test of quality inspection.

parameter
