I.Product introduction
ZX-BCS Automatic Transformer Turns Ratio Tester adopts large-screen true color liquid crystal as the display, full
Chinese graphical operation interface and equipped with English
prompt information, multi-parameter display LCD display interface,
human-machine dialogue interface friendly, vector diagram display
and wiring judgment to check the correct circuit Sex provides a
reliable basis.
Full touch type conductive silicone keyboard operation, operation
feel good, easy to learn.
The built-in large-capacity power-down device does not lose data
memory. It can save on-site verification data and can store and
expand up to 1,000 groups of on-site verification results.
It can provide back-end microcomputer management software, upload
results to a computer, and implement computerized management.
The instrument adopts an engineering plastic shell independently
designed and manufactured by the company.
The appearance of the instrument is beautiful and practical. Field
test is easy to operate.
II.Product advantages
(1)5-inch high-definition true color LCD screen is adopted to
display data effect and vector diagram effect, which is intuitive
and delicate.
(2)asy to carry: small volume and light weight.
(3)Equipped with high-capacity lithium-ion rechargeable battery,
the test can be completed on site without any power supply.
III.Features
1. Input single power, internal digital combination standard sine
wave test source output
2. Phase angle measurement function: measure the phase angle
between high voltage side and low voltage side. Measure the turn
ratio and angle of “Non integral point” transformer.
3. It can conduct single-phase measurement and three-phase winding
automatic test. Three phase turn ratio value, phase angle value,
error, tapping position, tapping value can be measured for once.It
also can identify connecting group number automatically.
4. Testing results can be displayed in the form of digit and
hexagon vector diagram, which makes transformer connecting group
can be made out obviously.
5. With blind test function: There is no need to choose connecting
method and group. When measuring Y/△,△/Y transformer, no external
short-circuit is needed, connecting method can be shifted
automatically according to the chosen testing contents.
6. With tapping test function: TTR and TTR error in the position of
each tapping switch can be gauged quickly. Just input rated TTR
once, instead of inputing over and over again, TTR error in tapping
position can be calculated.
7. With functions of turns ratio measurement and voltage TTR
measurement.
8. With 5.6 inch LCD, the effect of data & figure display is
visualized and fine.
9. With small size and light weight, it is easy to carry.
10. With built-in high capacity chargeable lithium battery. Test
can be conducted without any power supply on site, and once the
battery is charged fully, it can make measurement for more than 500
times continuously.
IV.Technical Indicators
| TTR measurement range | 0.8~10000. |
| High measurement speed | Three-phase test can be completed within 40 seconds. |
| Measurement accuracy | ①Voltage measurement accuracy on HV side: 0.05% ②Voltage measurement accuracy on LV side: 0.1% ③Phase angle measurement accuracy: 0.1° |
| TTR measurement accuracy | (1)0.1%(0.8－3000) (2)0.2%(3000－10000) |
| Volume | 320mm*240mm*130mm |
| Weight | 3Kg |
V.Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.
* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
(1)We will ship products within 5-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
If you are interested to this ZX-BCS 0.1 Accuracy Portable Automatic High Speed Transformer Turns Ratio
Tester For Field , please feel free to contact us.
VII.Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.

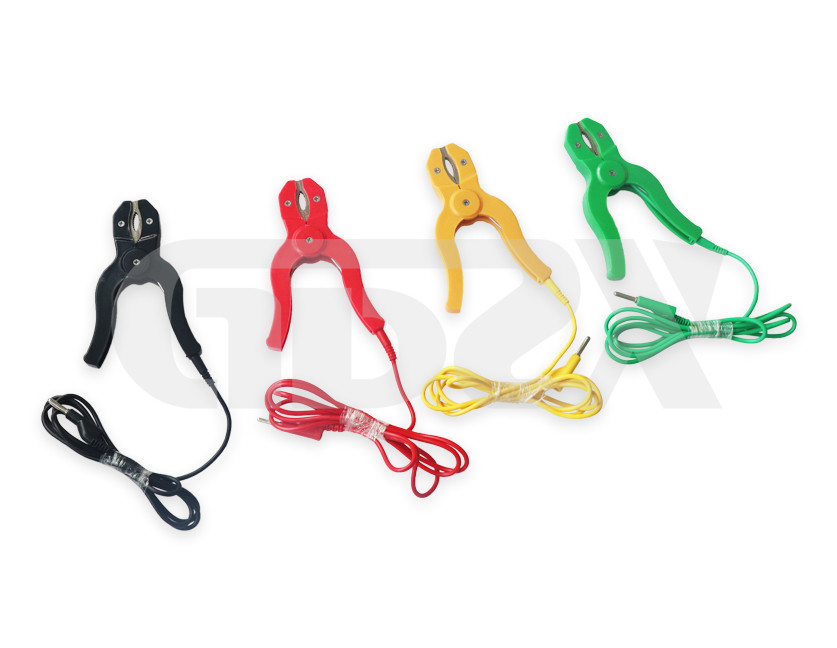

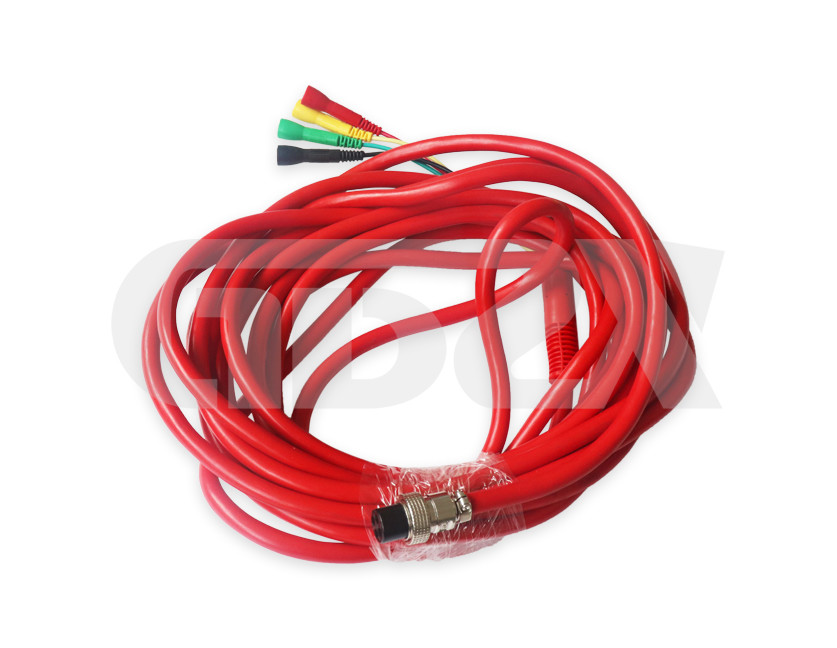

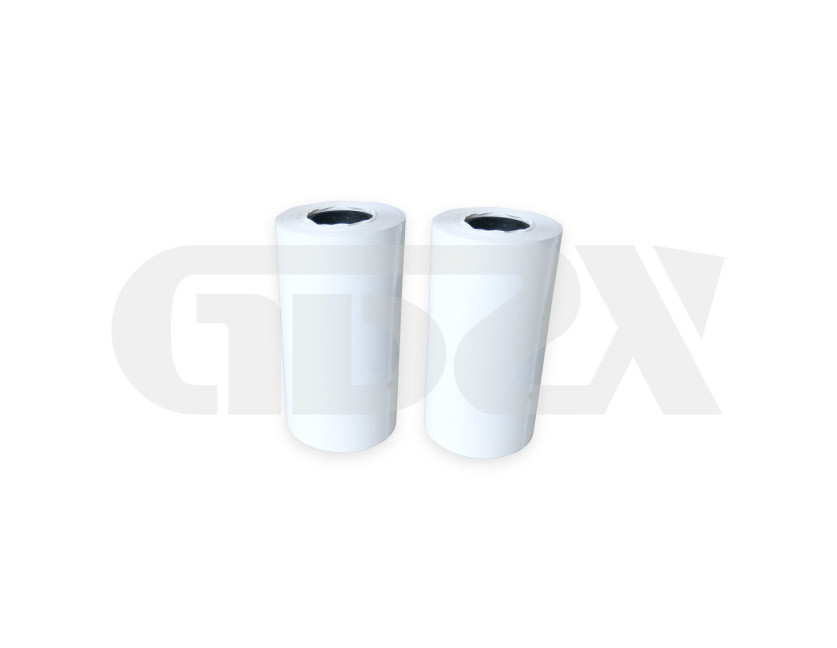

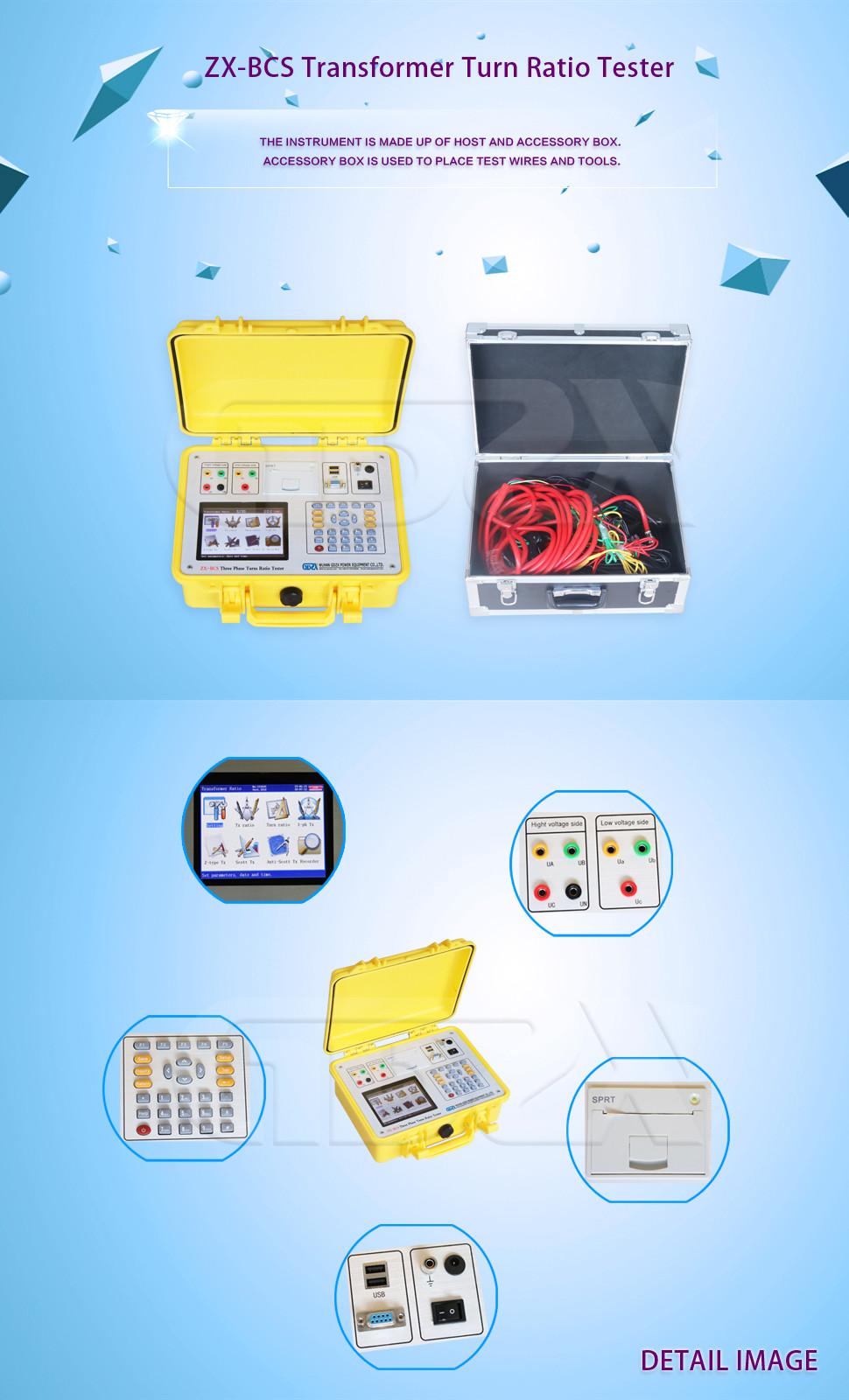

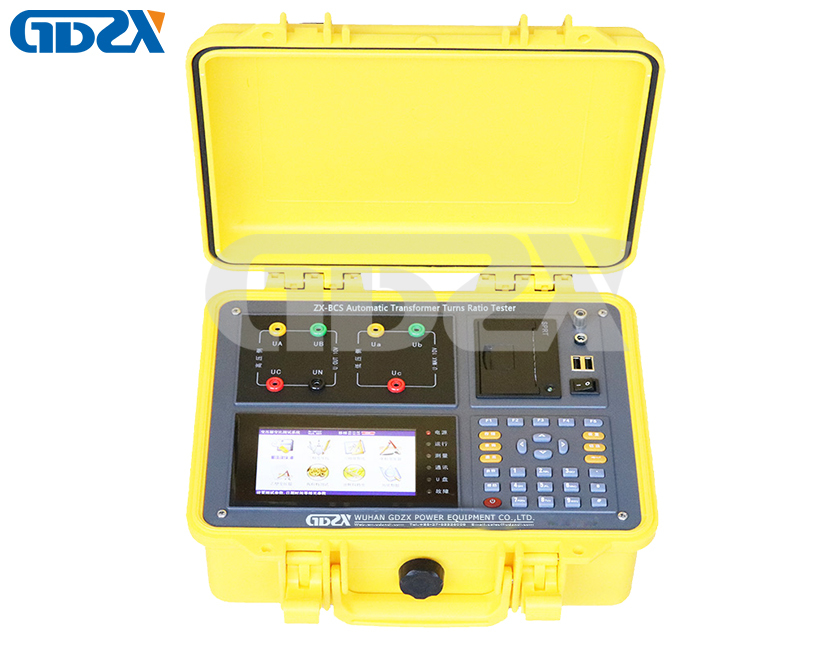

VIII.Product pictures
