Earth Insulation Tester
Newly Developed Digital DC /AC Grounding / Earth Resistance Tester
Product introduction
BY2571 Earth Resistance Tester applies to power industry, post and telecommunications, railway,
communications, mining and other sectors to measure the grounding
resistance of the various devices, and the conductor resistance of
low resistance; this instrument can also measure soil resistivity
and ground voltage.
The instrument is a newly developed earth resistance tester, which
abandons the traditional way of generating electricity by hand
operation, uses advanced middle-large scale integrated circuits and
applies DC/AC transformation technology to combine three-terminal
measurement method and four-terminal measurement method into one
model.
Features
1. High-strength aluminum alloy shell body, the circuit equips with
phase locked loop and switched capacitor filter, based on which the
instrument play an effective role in shielding power frequency and
radio frequency interference.
2. DC/AC converter can transform DC current into AC low-frequency
constant current for the measurement.
3. Auxiliary grounding resistance are allowed to change in the
range of 0 ~ 2KΩ (RC), 0 ~ 40KΩ (RP), that will not affect
measurement results.
4. No need manual adjustment to zero, with three and a half bits
LCD display, the instrument can be used for measuring the grounding
resistance, low conductor resistance, soil resistivity and AC
voltage to ground.
5. If tested loop encounter failure, the screen displays "1"
indicating overflow, which consistent with conventional measurement
practices.
Technical Indicators
| Operating Conditions | Temperature | 0℃～+45℃ |
| Relative humidity | ≤85%RH |
| Measuring range and constant current value (virtual value) | resistance | 0～2Ω(10mA),2～20Ω(10mA),20～200Ω(1mA) |
| voltage | AC 0～30V |
| Measurement accuracy and resolution | accuracy | 0～0.2Ω≤±3%±1d |
| 0.2Ω～200Ω≤±1.5%±1d |
| 1～30V≤±3%±1d |
| Resolution | 0.001Ω,0.01Ω,0.1Ω,0.01V |
Measurement errors caused by auxiliary
grounding resistance and ground voltage | Auxiliary grounding resistance | RC (between C1 and C2) <1.8KΩ |
| RP (between P1 and P2) <40KΩ error ≤ ± 5% |
| Ground voltage (power frequency RMS) | ≤ 5V error ≤ ± 5% |
| Power supply and power dissipation | Maximum power dissipation | ≤2W |
| DC | 6.8V-9V 7*#5 rechargeable battery |
| AC | 220V/50Hz |
| Main machine size and weight | 220×200×105mm3 ≤1.4kg |
Company profile
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design ,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
Packaging & Delivery
(1)We will ship products within 8-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
If you are interested to this BY2571 DC/AC Transformation Technology Transformation Digital Earth
Resistance Tester, please feel free to contact us.

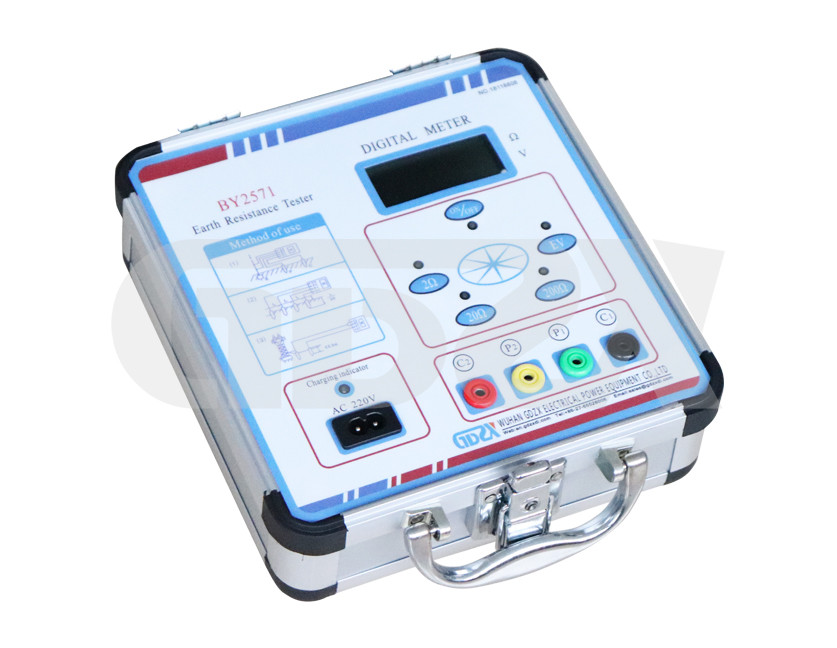

Product pictures
