    High Precision CT Standard Current Transformer Hor Calibration

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZX-HL
    Certification : ISO9001
    Price : 200USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/month
    • Product Details
    • Company Profile

    High Precision CT Standard Current Transformer Hor Calibration

    High-Precision CT Standard Current Transformer Hor Calibration




    Product Introduction :


    The ZXHL series standard current transformer is used to verify the current of two levels or less than the accuracy level. It is composed of primary winding and secondary winding. When wiring, strictly refer to the current ratio given by the wiring board for wiring. L1 and K1 are the polar ends of the primary and secondary windings respectively, and La is the polar end when it is necessary to pass through.


    Main characteristics:
    • The user can check according to the standard current ratio indicated on the nameplate.
    • The current ratio of 5/5 or 1/1 can be self-calibrated.
    • The instrument has casters for easy transportation.

    Technical indicators:


    1. Temperature: -5℃ ~ +40℃

    2. Humidity: < 80

    3. Capacity: 5VA

    4. Power factor: COSφ=0.8-1

    5. Allowed to work in rated current for a long time, above 150A through the heart

    6. Weight: < 20kg

    7. Standard current ratio: 0.1a ~ 10000A/5A, 1A

    8. Volume: 280mm×60mm×60mm



    For more information , click this link to send us inquiry now !

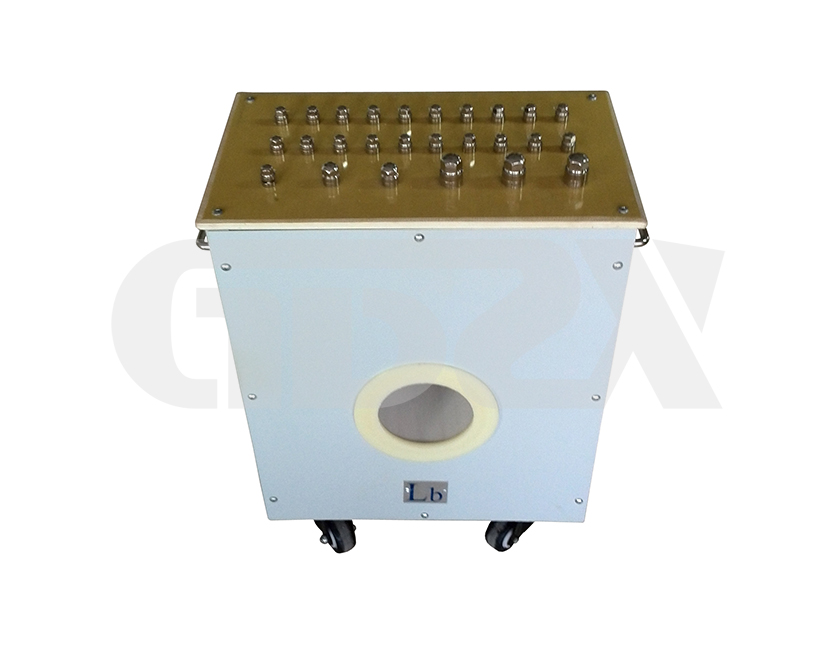

    Product pictures:



    Our company :

    Wuhan GDZX Power Equipment Co.,ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
    What's more, our customers come from different countries like America, England, Peru , Malysia, Vietnam ,Singapore and so on.

    Our main products are High voltage tester , Cable Fault Locator, Power Quality Analyzer, Standard Power source , Testing Transformer and so on.



    Packaging & Delivery

    1. Delivery within 8-15 work days
    2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
    3. Experienced and professional logistic agent .
