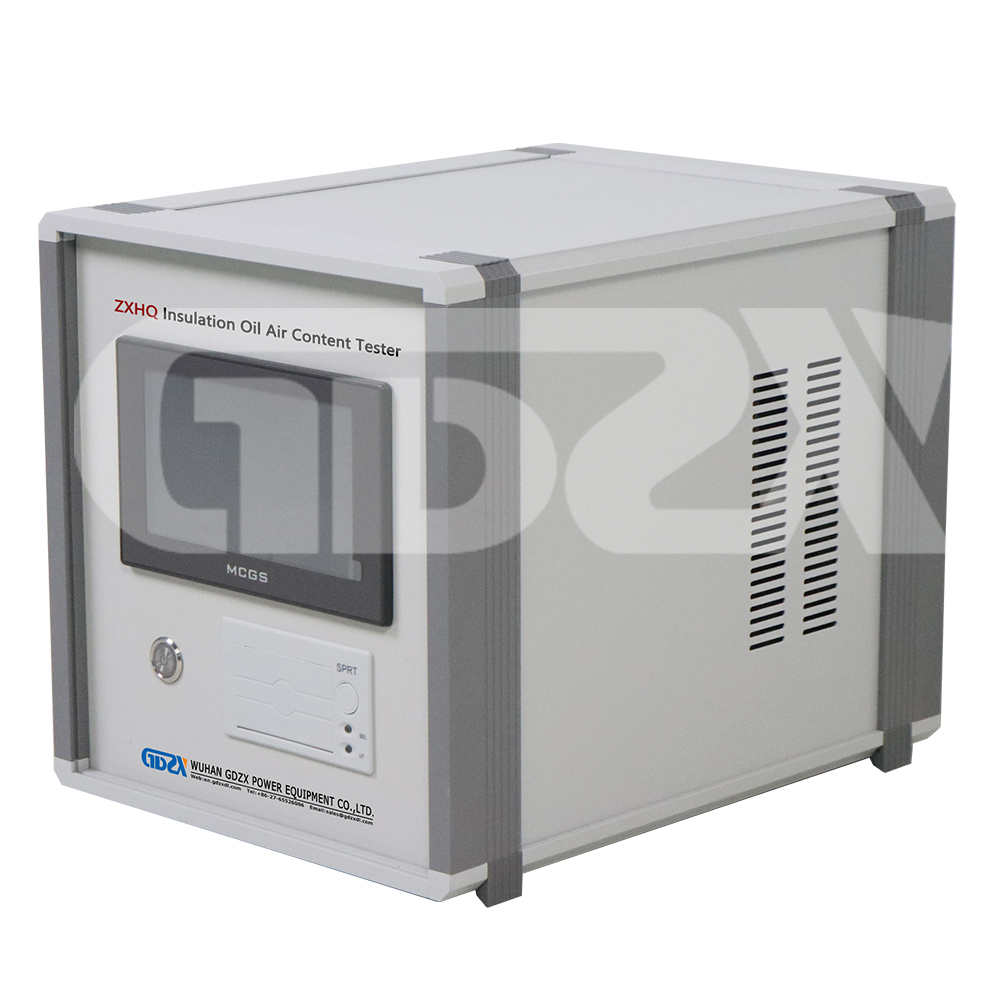

ZXHQ Insulation Oil Air Content Tester
Product introduction
ZXHQ Insulating Oil Air Content Tester is a new generation of tester developed based on DL423-91 power
industry standards and relevant national standards, using imported
high-precision sensors and new sensor technology. It is more
practical, more stable and reliable, and easy to operate. It is
more suitable for the measurement of gas content in high-voltage
oil filled equipment. It is an ideal test equipment in your
laboratory, which will make your work feel easier.
Features
1. Using DL423-91 vacuum pressure difference method standard,
testing sensibility <0.2%;
2. Full metal structure to replace glass tube type which is fragile
and difficult to seal;
3. Automatic quantitative sampling, measuring, displaying, saving
of data, and oil discharge;
4. High sensibility, good repeatability because of using high
precision high stability sensor ;
5. Auto measure present atmosphere pressure and ambient
temperature, whenever and wherever, auto calculate and display air
content under 101．3Kpa,0℃;
6. Unique testing program for gas injection calibration and
re-calibration;
7.Push start key then after about 7 minutes the testing results can
be displayed on the screen. It automatically save 20 testing
results which can be reviewed at any time;
8. Whole process control on vacuum pump running, low noise;
9. Simple to operate, only need connection with one channel gas
supply and vacuum pump;
| 1. Measuring range: | 0.1%~10%(air content) |
| 2. Testing sensibility: | <0.2% |
| 3. Repeatability: | (the same sampling, several time testing)<10% |
| 4. Power supply: | AC 220V士10%,50 Hz |
| 5. Volume: | 450*325*350mm³ |
| 6. Weight: | about 20Kg |
Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.
* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
FAQ:
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
We have R&D department, OEM& ODM services available.
2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after
checking the payment. However, for example, the delivery time of
the complete set of test devices will be a little longer, which
needs to be checked in real time.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay
charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30%
T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money
Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM services available
7.Q: How long is the product warranty?
A: 1 year.
