10A DC Resistance Transformer Testing Equipment Perfect Protection Circuit

10A DC Resistance Meter Transformer Testing Equipment Winding Resistance Meter

I. Product introduction

ZXR-10A Transformer Winding Resistance Tester adopts new power supply technology, featuring small size, light weight, large output current, wide range and digital display.

The whole machine is controlled by single-chip microcomputer, which automatically completes functions such as self-test, data processing and display, and has automatic discharge and discharge indication functions.

The instrument has high test accuracy and easy operation, and can realize rapid measurement of direct resistance. The instrument has a built-in lithium battery, which is very convenient for field test work.

II. Features

1. The instrument has a large output current and is light in weight.

2. The instrument provides 7-speed output current selection, which can output up to 10A current.

3. The measuring range of the instrument is 0uΩ-20KΩ.

4. With perfect protection circuit, the performance is more reliable.

5. Lithium battery power supply for easy on-site operation.

6. The LCD prompt menu is easy to use.

7. It has sound and liquid crystal indicating discharge alarm, clear discharge index and reduce misoperation.

III. Technical Indicators

1. Test current: 10A, 5A, 1A, 200mA, 400mA, 40mA, <5mA.

2. Range:

(1)0-180mΩ (10A)

(2)180mΩ-360mΩ (5A)

(3)360mΩ-1.8Ω (1A)

(4)1.8Ω-4.5Ω (400mA)

(5)4.5Ω-9Ω (200mA)

(6)9Ω-45Ω (40mA)

(7)45Ω-20kΩ (<5mA)

(8)0mΩ-20kΩ (automatic)

3. Accuracy: 2 ‰ ± 2μΩ

4. Resolution: 0.1μΩ

5 Operating temperature: -20 ~ 40 ℃

6. Humidity: ≤ 80% RH, no condensation

7. Power Supply: Lithium-ion rechargeable battery.

8. Volume: 400 × 220 × 320mm

9. Weight: 10kg

10. Battery working time: about 2 hours of continuous operation.

IV. Company introduction

Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

V. Service and Warranty

Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

Warranty

* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.

* Our products are guaranteed with one year warranty and life-long tech support.

* Provide solutions within 24 hours when there is problems feedback from customer.

VI. PACKING AND SHIPPING

(1)We will ship products within 10 days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.

(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.

(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.

(5)After shipping, we will remain attentive till goods well received.

If you need detailed specification, please feel free to contact us.

If you are interested to this ZXR-10A DC Resistance Meter Transformer Testing Equipment Winding Resistance Meter, please conact us now!

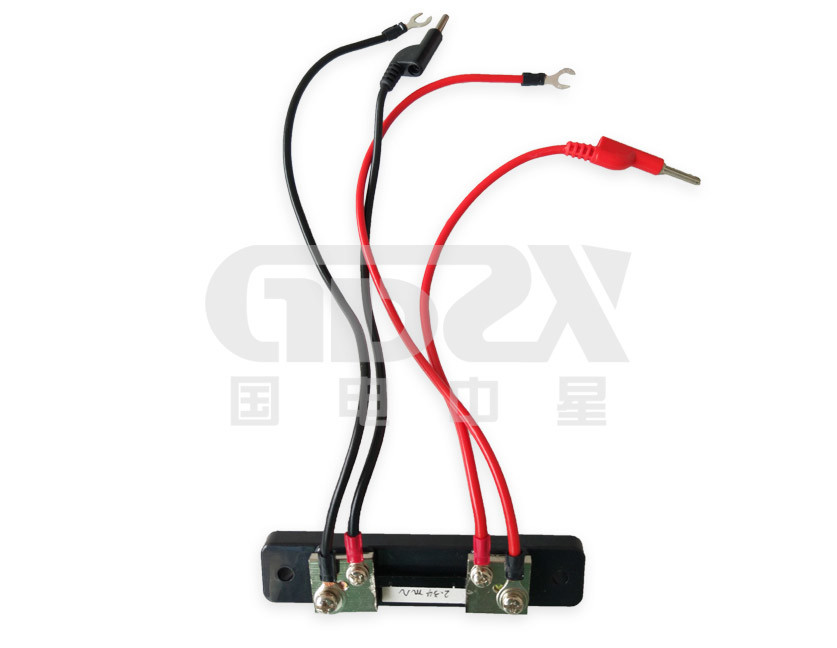

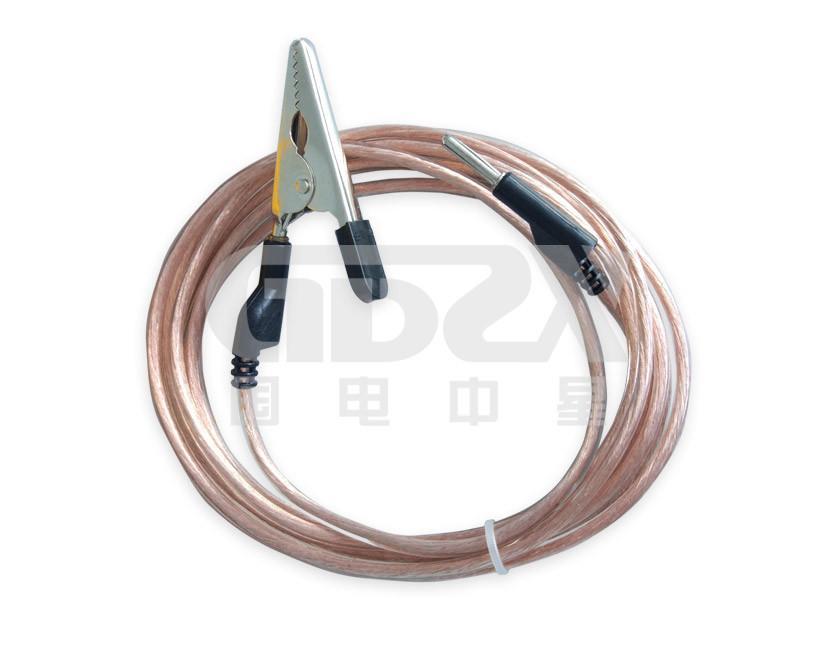

VII. Product pictures
