Relay Protection Tester
For Switching Control Equipment 200A Contact Resistance Tester
Product introduction
ZXHL-200A Contact Resistance Tester is designed for measuring contact resistance of Switching Control
Equipment, using High-frequency switching power supply technology
and digital circuit technology. It is high precision and good
stability and can meet most power systems’ requirements in
high-voltage switches maintenance and high-voltage switches factory
contact resistance measurement.
Features
1. High current: For latest power supply technology, the tester can
continuously output high current which overcomes the weakness of
instantaneous current produced by pulsed power. It can effectively
breakdown/puncture the oxide layer of the switches and then get
precise results.
2. Strong anti-interference ability: The last number of test data
will stably show in the LCD screen only with ±1d error even in
strong Interference situation.
3. Long service life: All the precise resistances used in the
tester can reduce the temperature’s impact on the measurement
results and military connectors can enhance vibration resistance.
4. Convenience: Small size, light weight.
Technical Indicators
| Measurement Range | 1～1999μΩ |
| Resolution | 1μΩ |
| Test Current | DC 50A,100A,150A,200A fixed output |
| Measurement accuracy | 0.5% |
| Work method | Continuously |
| Display | Three and a half LCD |
| Power Supply | AC220V±10%,50Hz |
| Work Environment | Temperature -10℃～40℃ Humidity:≤80 %RH |
| Dimension | 380×350×260mm |
| Weight | 10Kg(Accessories excluded) |

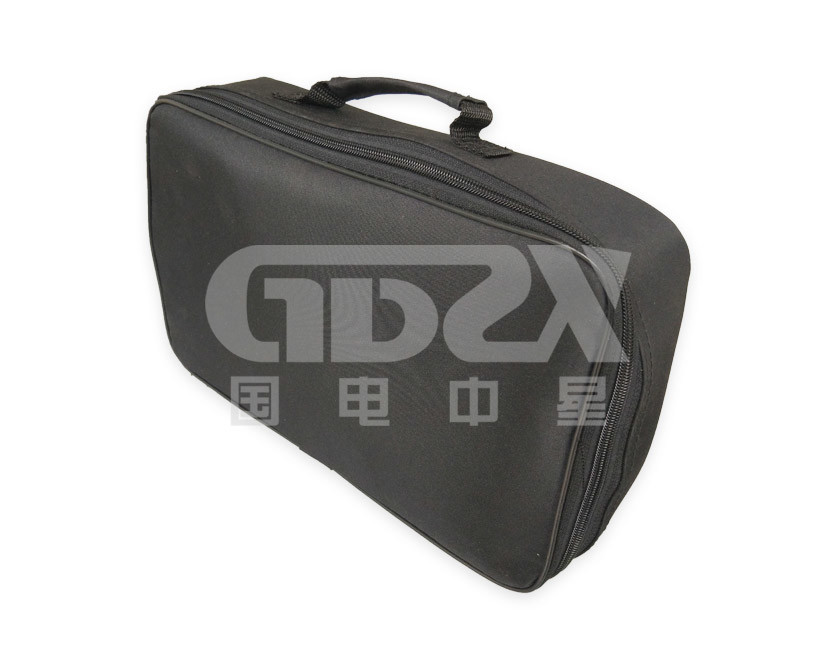

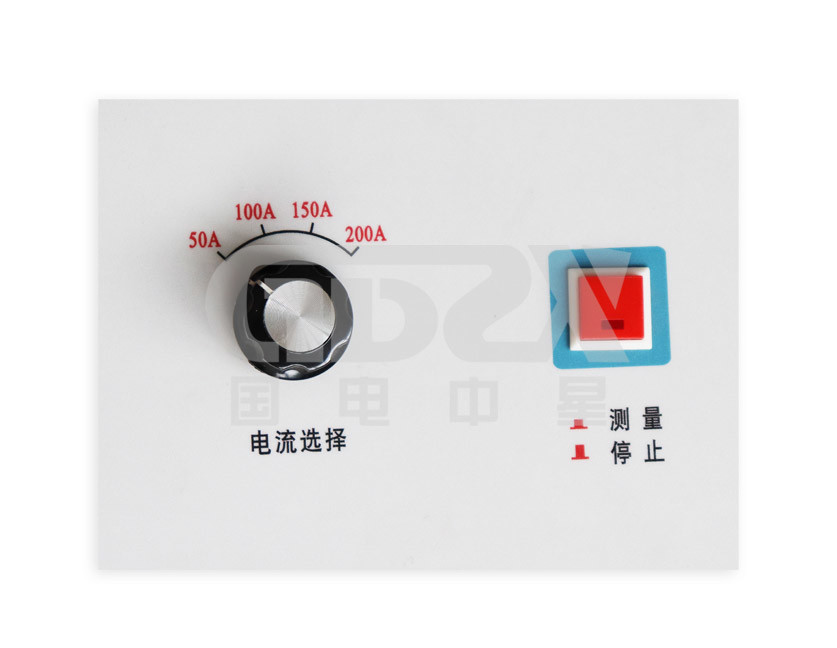

Produc pictures
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
PACKING AND SHIPPING
(1)We will ship products within 10 days after the receipt of
confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
Test cases
