ZGS Automatic DC High Voltage Generator Test Equipment For Zinc
Oxide Arresters
I. Product Introduction
ZGS intelligent DC high voltage generator is widely used in DC high voltage test of electric equipment such
as zinc oxide surge arrester, magnetic blow arrester, power cable,
generator, transformer and circuit breaker.
II.Product fetaures
1. Touch LCD screen.
2. Full automatic MOA test function: good repeatability and high
accuracy.
3. Automatic voltage step-up function: test voltage to be preset,
output voltage can keep constant.
4. Automatic timing function: after preset test standard voltage
step up time, auto timing after test voltage is reach, when time is
up it auto reducing the voltage,
5. Over-voltage setting to be processed via microprocessor, high
accuracy ,good reliability.
6. Manual test mode for option
7. Data storage function:instantly capture test parameters and auto
data save
8. Special shielding, isolation, grounding protection measures to
prevent the equipment from damage during withstand of the rated
voltage discharge.
9. Software to support connection and working on computer.
III.Technical parameters
| 40/4 | 60/3 | 60/10 | 100/2 | 120/2 | 120/5 | 200/2 | 200/3 | 200/5 | 300/3 | 300/5 |
| Rated Voltage(kV) | 40 | 60 | 60 | 100 | 120 | 120 | 200 | 200 | 200 | 300 | 300 |
| Rated Current(mA) | 4 | 3 | 10 | 2 | 2 | 5 | 2 | 3 | 5 | 3 | 5 |
| Rated power(W) | 160 | 180 | 600 | 200 | 240 | 600 | 400 | 600 | 1000 | 900 | 1500 |
| Voltage measurement accuracy | Digital display ± (1.0% reading ± 0.2kV) |
| Current measurement acc uracy | Digital display ± (1.0% reading ± 2) |
| Corrugation coefficient | ≤0.5％ |
| Voltage stability | Random fluctuation, ≤1% when the power supply voltage changes by
±10% |
| Overload capability | No-load voltage can exceed 10% of rated voltage. Ten minutes of
maximum charging current is 1.5 times rated current. |
| Power | Single-phase AC 50Hz 220V±10% |
| Way of working | Intermittent use |
| A continuous time of up to 30 minutes |
Working environment | Temperature: -10 to 40℃ |
| Relative humidity: no more than 85% at room temperature of 25℃(no
condensation) |
| Altitude: below 1500 meters |
| With capacitive load capacity | The tested product has unlimited capacity |
| Can be charged with 1.5 times rated current |
| Structural features | Epoxy FRP electrical insulation double pressure cylinder |
| Air insulation, no leakage |
| Operating box features | The high-precision 0.75UDC--1mA one-touch button (accuracy ≤1.0%)
is most suitable for zinc oxide arrester test. |
| The overvoltage protection is automatically set at a glance. |
| The vertical and horizontal dual-use international standard chassis
makes the site more convenient. |
IV.Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
V.Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
PACKING AND SHIPPING
(1)We will ship products within 10 days after the receipt of
confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.

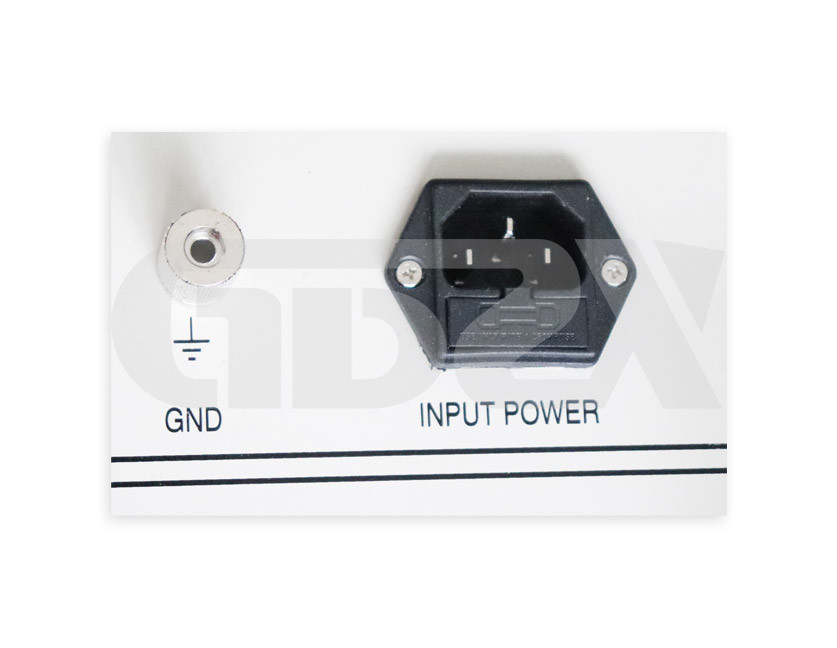

VI.Accessories pictures
