35-220kV AC Third-harmonic Generator,Transformer inductive
withstand voltage device
Product introduction
ZXSBF Third-harmonic Generator is designed to meet frequency multiplied Induced Over-voltage
Withstand Test requirements, which applied to testing of series
excited High Potential Transformers with voltage system at
35-220kV.
It can evaluate the dielectric strength of transformers, carry on
induced voltage test on mini transformer windings, or work as short
time 150Hz power source.
Features
1. Easy to operate, with reliable performance.
2. Suitable for induced over voltage withstand test.
Technical Indicators
| 1. Input voltage | Three phase 380V 50Hz Sine wave
|
| 2. Output voltage | 0-300V, 0-500V, 0-1000V, 150Hz
|
| 3. Wave distortion | ≤5% |
| 4. Output capacity | 0-375kVA |
| 5. No load operation time | ≤5mins |
| 6. Loading operation time | 40~60 seconds |

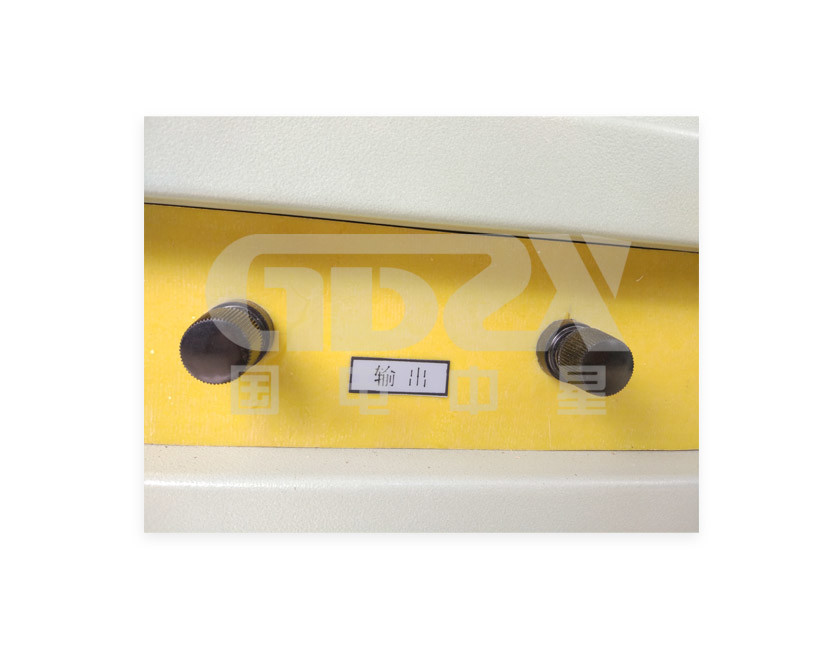

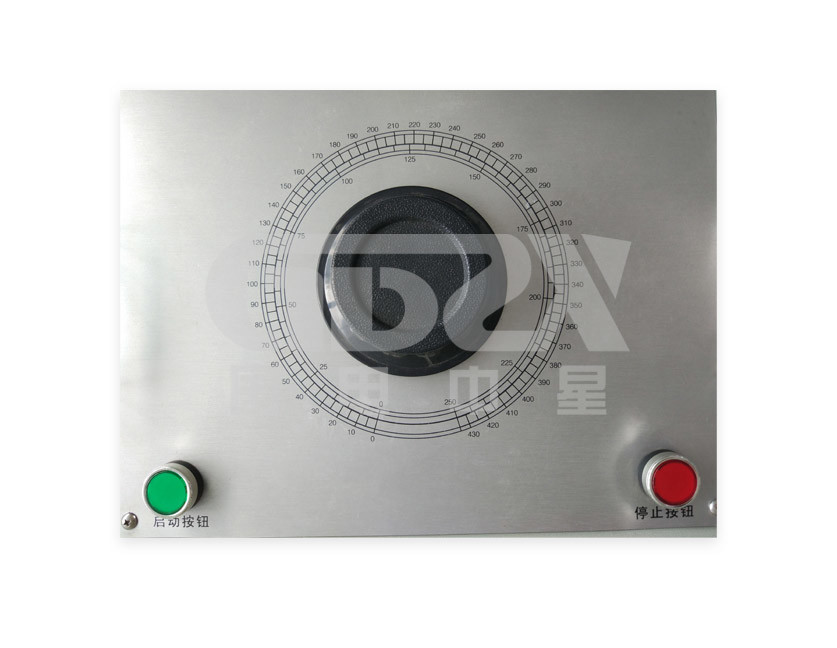

Product pictures
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.
* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
