Handheld Messages Analyzer, Optical Digital Relay Protection Tester
For Intelligent Substation
Product introduction

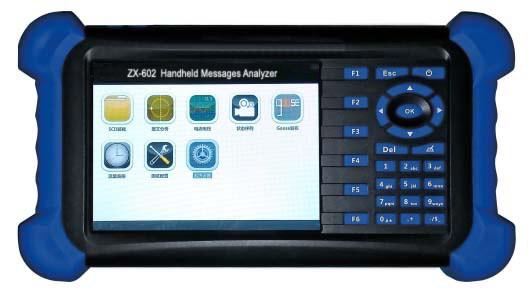

ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent
terminals, merging units and transducers. It is multi-functional
with high precision and is essential equipment for installation,
debugging, and maintenance of intelligent substation.
Features
1. Capacitive mul-touch panel (5.7”), built in 11000mAh
rechargeable li-battery, the continuous voyage ability over 6 hours
2. With 3 pairs optical Ethernet interface, 1 pair optical serial
interface, 1 IRIG-B/PPS synchronous interface, support single-mode
fiber connection
3. G-net interface for optical Ethernet interface, 100/1000Mbits/s
self-adaptive
4. 2 channel hard switching input contact and 4 channel hard
switching output contact, for intelligent terminal response testing
5. Support connection with USB storage device, for data
import/export
6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8
FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.
7. Multi-functional, can test bay level, process level protection
device, merging unit, intelligent terminal, mutual inducors.
8. Graph demonstration of various electrical parameters, direct
result reading
9. A9+FPGA dual-core IPC performance, fast operation speed, message
sending dispersion <0.1us, receiving time error <25ns
10. Small and portable, simple to use
Technical Indicators
| Technical parameter |
| Optical fiber Ethernet port | 3pairs*100/1000Mbits/s,adaptive,LC,
multimode,310nm；IEC61850-9-1/2/LE,Goose,IEEE-1588;With optical
power measurement; | Transmission dispersion:<0.1μs
Receiving time scale accuracy:<25ns
1588 timing accuracy:<80ns |
|
|
| Optical fiber serial port | 1 pair*(2-10Mbits / s), LC, multimode, 850nm; IEC60044-7/8,FT3;Support man code or asynchronous serial port
transmission mode; | Transmission dispersion:<0.1μs
Receiving time scale accuracy:<25ns |
|
| Synchronous interface | 1 pair*IRIG-B/PPS optical port, LC, multimode, 850nm | Accuracy:<400ns |
| Hard input | 2 pairs,10-250VDC or empty contact, automatic identification, no
polarity | |
| Hard out | 2 pairs, empty contact / quick opening, AC/DC breaking
capacity:0.5A,250 | Fast departure time:<10μs |
| Electric Ethernet port | 1pc,RJ-45,100Mbits/s | |
| USB interface | 1pc,USB storage device | |
| Screen | 5.7’,Capacitive screen, multi touch | |
| Power supply | 4.2V,3.0A | |
| Battery | Li-On rechargeable,11000mAh | Endurance time: > 6 hours |
| Volume | 250mm*140mm*44mm | Weight:<1Kg |
