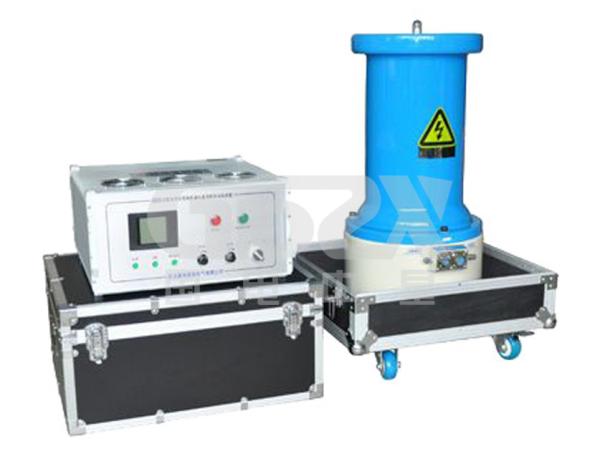

20-150mA Three phase four wire Water Internal Cooling Generator
Water DC High Voltage Generator
Product introduction
ZGF-S series is the equipment of testing DC voltage and DC leakage current of
water-cooled generator in the situation of water through, which
completely overcome the problems of long blow water time, bottom
water hard to dry, easy to cause arcing within the coil. The device
is light, simple wiring, and easy to read. Polarization
compensation voltage is output directly by the case.
Features
1. Electronic control and tune, easy to operate.
2. The date of voltage and current are recorded in the panel,
reading without conversion.
3. One minute timing and tip function.
4. Perfect over-voltage and over-current protection function
inside, also zinc oxide over-voltage protection outside, which
ensure safety of generator.
5. Portable design, suitable for on-site testing.
6. Four parts separated: control unit, Intermediate Frequency
Transformer, doubler and accessories, all packed with special
shockproof aluminum alloy cabinet, easy to move.
Technical Indicators
| Specifications kV/mA | 50/100 | 50/120 | 60/150 | 60/200 | 80/200 |
| Output voltage kV | 50 | 50 | 60 | 60 | 80 |
| Output current mA | 100 | 120 | 150 | 200 | 200 |
| Output power W | 5000 | 6000 | 9000 | 12000 | 16000 |
| Voltage measurement error | ≤1.0%±1 word |
| Current measurement error | ≤1.0%±1 word |
| Overvoltage setting error | ≤1.0% |
| Ripple coefficient | ≤3.0% |
| Voltage stability | ≤1.0% |
| Supply voltage | AC 220V | AC380V(Three phase four wire) |
| Chassis weight | 25.0Kg |
| Double pressure weight | 45.0Kg | 65.0Kg | 70.0Kg |
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design,
production and sales, providing complete solutions for high-voltage
testing and electrical testing services for various power users.The
main products include:AC series resonance test device, high voltage
test equipment, transformer test equipment, secondary protection /
switch test equipment, cable fault tester, arrester test equipment,
power metering equipment, standard source series and so on. There
are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and
professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in
hand.
* Reasonable price, we trust our customers should get the worth
what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful
implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take
notes of user’s questions and schedule, provide the necessary
technical support.
* Move quick and efficient, professional on delivery, installation,
debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback
if you fell anything wrong with the product, we will make it right
for you.
* Our products are guaranteed with one year warranty and life-long
tech support.
* Provide solutions within 24 hours when there is problems feedback
from customer.
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
