10kV-500kV Transformer On Load Tap Changer AC Parameter Tester For
Field Test
Product introduction

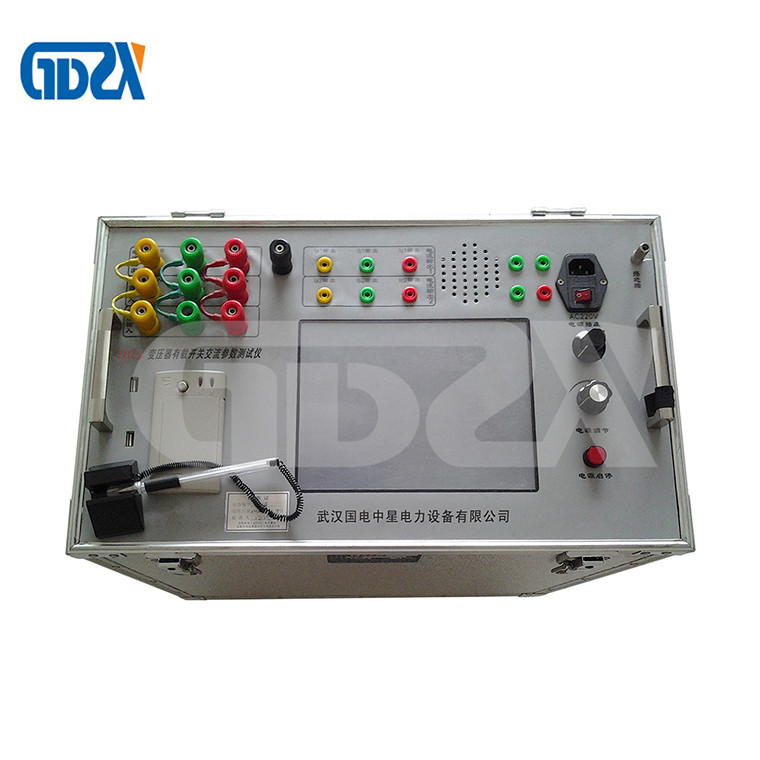

ZXYZ-J On Load Tap Changer AC Parameter Tester is an ideal device for testing on load tap changer.
Features
1. AC method to test the true transition waveform ( No Filtering
processing), suitable for on site test of parameters like
transition waveform, transition time, transient resistance and
three-phase synchronization.
2. It is easy to judge the on load tap changer when use AC test
method. If the total transition waveform is continuous then the
working condition is good
3. Can test 10kV~500kV voltage no matter what kind of winding
wiring ways.
4. Built in power supply or external connecting power supply. Built
in type can output three phase power with simple wire connection,
external power supply can test high voltage test, zero sequence
test
5. High speed sampling: over 200k/s/channel ( usually DC method
speed is 10k/s). Large storage capacity, cache depth up to 8M byte
FIFO.
6. With embedded computer and testing software, 10.4” color lCD,
touch screen, printer, supporting U disk and USB keyboard and mouse
7. Meet the request of intelligent power grid operation and
management system. The on-site operator can connect the sampler
with tablet PC and transmit data via internet
8. Can transmit and export the data to office PC for further
analysis or editing off line
9. Can work as a digital multimeter
10. Integrated structure, portable, simple wire connection
Technical Indicators
1. Working condition:
| 1)environment temperature: -10℃～40℃ 2)environment humidity: ≤80% 3)altitude: ≤2000m |
2. Power supply
| 1)Single phase voltage: 220(1±10%)V 2)Frequency: 50Hz±1Hz 3)Waveform: sine wave, distortion≤2% |
3. Internal output testing power:
| 1)AC output frequency: 50Hz±0.2Hz(adjustable) 2)AC output voltage range: Three phase four line 0～500V( voltage
adjustable) 3)AC output capacity: rating 1000VA |
4)AC power source waveform distortion factor:≤3% 5)AC current voltage phase angle: 120°angle difference≯120°±1° |
4,Accuracy
| 1)Synchronous sampling channels: 6 2)Sampling data accuracy: 16 digits 3)Sampling speed: 200 k/s/channel |
4)Sampling panel caching depth: 8 M byte FIFO 5)Voltage range: 0V～500V 6)Current range: 0mA～100mA,0A～10A 7)Voltage current accuracy: 0.5 |
5,Insulation
| 1)Insulation resistance: power supply input terminal to case ＞20MΩ 2)It can withstand 1500V AC voltage (RMS) |
6,Weight and volume:
| 1)Weight: 30kg (exclude accessories) 2)Dimension: 530*320*600(mm) |
