ZXFZ-H Generator Rotor Impedance Tester
Product introduction
ZXFZ-H Generator Rotor Impedance Tester adopts the state-of-the-art high speed microprocessor technology
with more powerful functions, preferable performances and more
convenient use. The Tester has a series of characteristics such as
high reliability, easy operation, high test precision, being
compact and lightweight and etc., and currently is in the domestic
leading level.
Features
1. Automatic acquisition, measuring, displaying, saving, printing
of parameters and impedance characteristics curve (voltage,
current, impedance, power, frequency, equipment Numbers, time,
etc.).
2. Wide range, two measuring mode: automatically or manually
3. Built in large capacity memory, RS232 communication interface
for uploading data to PC, offered software can be used to download
data, generate and edit typical testing reports.
4. Perfect over-voltage, over-current protection function, and the
device auto adjust protection value according to set testing
parameters.
5. other functions: single-phase transformer no-load, short-circuit
testing, CT/PT and arc suppressing coil volt-ampere characteristic
testing.
6. Large screen graphic LCD, cursor hint operation, and it auto
resize curvilinear coordinates.
7. With micro printer built in, testing report and curve can be
printed out at any time.
Technical Indicators
1. Working condition:
| 1) Temperature: -5℃～40℃ 2) Relative humidity: <95%(25℃) 3) Altitude: <2500m |
4) external disturbance: no extra-heavy shock, no extra-heavy
electromagnetic field 5)Power supply: 160VAC~280VAC, 45Hz~55Hz |
2. Performance:
| 1) Ac impedance 0 ~ 6kΩ 0.2 level 2) Ac voltage 0 ~ 600V 0.2 level 3) Ac current 0 ~ 120A 0.2 level 4) Active power 0 ~ 72kW 0.2 level |
5) Frequency: 45 ~ 75Hz 0.2 level 6) Working power supply: 220V + 10% 50Hz 7) Dimension: 415*225*200 mm 8) Weight: 5 kg |
3. Dielectric strength:
| 1) the insulating resistance of voltage, current input terminal to
case≥100MΩ 2) the input terminal of the working power can stand 2kV (RMS) to
case, time is 1 minute |

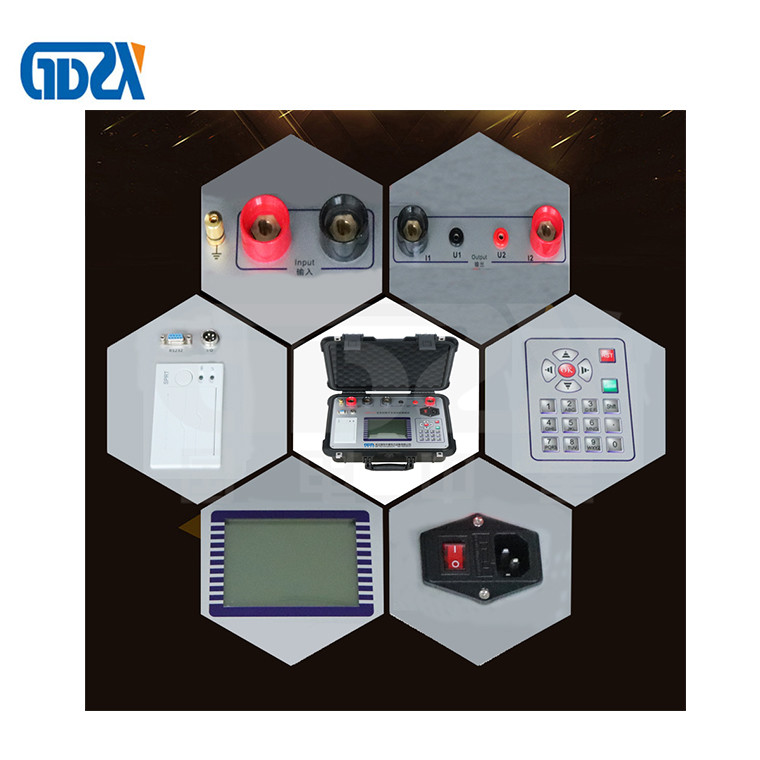

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
