ZX2672 Insulation Resistance Tester(5000V)
It is used to measure the resistance of various insulating
materials and the insulation resistance of transformers, motors,
cables and electrical equipment.
Product introduction

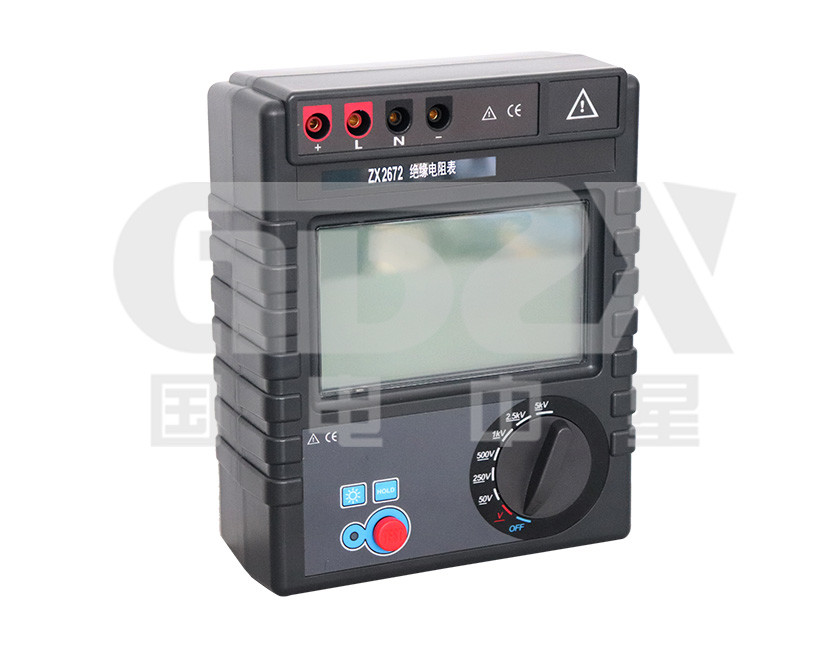

ZX2672 Insulation Resistance Meter is a high-performance digital instrument with LCD large screen
with backlight display, data retention, automatic discharge,
automatic shutdown and other functions. The instrument has the
functions of test timing and voltage monitoring. When the circuit
voltage is greater than 36V, the instrument will prohibit testing
to protect the safety of the tested object and personnel. The
insulation resistance value, test time and output voltage are
displayed on the same screen. At the same time, it also has the
function of measuring AC voltage and DC voltage. The output voltage
of this series of instruments is 5000V, the test resistance is
400GΩ, and the short-circuit current is 2mA.
The whole instrument is beautiful, with wide range, high precision,
high resolution, convenient operation, convenient carrying,
accurate and reliable, stable performance and strong
anti-interference ability. Moreover, it has shockproof, dust-proof
and moisture-proof structures. It is a commonly used and essential
instrument for the installation and maintenance of
telecommunications, electric power, meteorology, machine rooms, oil
fields, electromechanical equipment, and industrial enterprise
departments that use electricity as industrial power or energy. It
is suitable for measuring the resistance of various insulating
materials and the insulation resistance of transformers, motors,
cables and electrical equipment.
Features
1. The whole instrument is beautiful, with wide range, high
precision and high resolution;
2. Convenient operation, convenient carrying, accurate and
reliable, stable performance and strong anti-interference ability;
3. It has shockproof, dust-proof and moisture-proof structure;
4. LCD large screen with backlight display, data retention,
automatic discharge, automatic shutdown and other functions;
6. The instrument has the functions of test timing and voltage
monitoring;
7. Insulation resistance value, test time and output voltage are
displayed on the same screen;
8. Measure AC voltage and DC voltage.
Technical Indicators
| Function | Insulation resistance test, AC voltage test, DC voltage test |
| Power Supply | DC 1.5V 6 LR14 dry batteries for continuous standby for more than
100 hours |
| Rated voltage | 50V;250V;500V;1000V;2500V;5000V |
| Insulation resistance range | 0.1MΩ~400GΩ |
| Voltage range | AC/DC:0V~750V |
| Output short-circuit current | ≥2mA |
| Capacitive load | 1uF |
| Shift | Turn the shift knob to select the corresponding gear |
| Backlight | Controllable gray white backlight, suitable for use in dim fields |
| Display mode | 4-bit super large LCD display, with obvious contrast |
| Measurement indication | LED flashes and buzzer rings during measurement |
| LCD size | 108mm*65mm |
| Instrument size | Length* Width*Height:212mm*175mm*76mm |

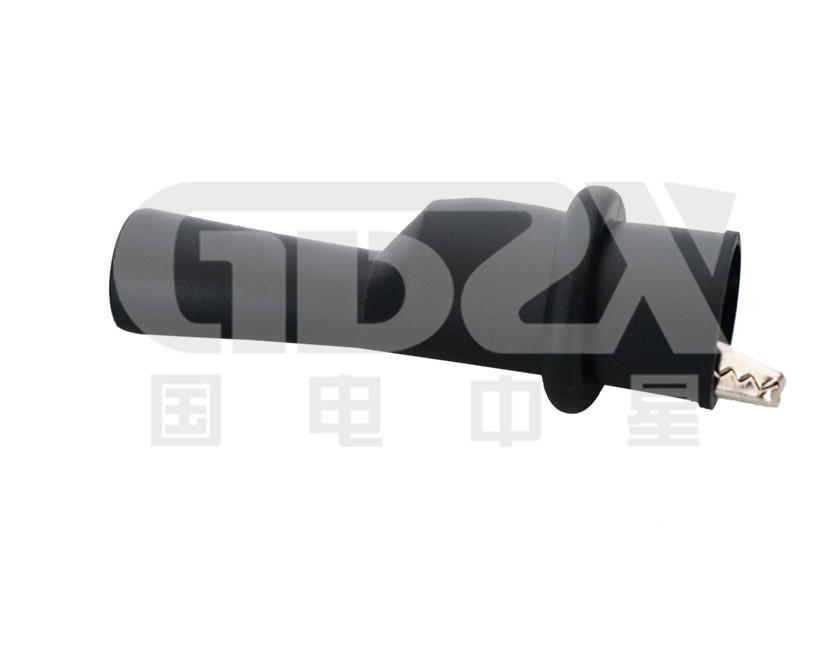

| Test line | High voltage rod test line: 1 red; Probe test line: 1 black;
Crocodile clip test line: 1; Crocodile clip: 1 |
| Measurement time | The single test time is 1min. During the test, the user can stop
manually or automatically after 1min, and the measurement data is
displayed on the screen. |
| Battery voltage | The battery undervoltage symbol shows that when the battery voltage
is low, it reminds you to replace the battery in time. |
| Automatic discharge function | The symbol flashes when discharging. The discharge completion
symbol goes out. |
| Auto Power Off | Automatic shutdown after 15 minutes of startup |
| Power waste | Standby: about 40mA (backlight off); Measurement: About 100mA
(backlight off) |
| Weight | Instrument:1230g (Including battery) |
| Working temperature and humidity | -10℃～40℃；Below 80%rh |
| Storage temperature and humidity | -20℃～60℃；Below 70%rh |
| Suitable for safety regulations | IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution degree 2) |
