    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld

    Intelligent Digital Hand-Held Storage Battery Internal Resistance Tester


    Product introduction

    ZX-NZY01 Storage Battery Internal Resistance Tester is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.


    Via accurate testing of resistance (or conductance) and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.

    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld


    Features

    • One unit in two, smart switch to measure both internal resistance and conductance of batteries. Wide test range up to 6000Ah for Lead-Acid or Nickel-Cadmium single battery which is up to 16V.
    • Field proven accurate and repeatable measurement to identify battery health.
    • Very fast and consistent measurement of battery or multiple batteries (with setting once) in seconds.
    • It adopts advanced measurement way of AC signal discharge to test internal resistance or conductance.
    • User friendly TFT touch screen and key pad as alternative operation.
    • Big memory for measurement data storage of more than 100,000 cells.
    • Universal micro USB for data exportation and also tester charge.
    • Functional PC battery management software for recording of full battery info and easy report print out.
    • Battery pack is durable in the field with testing time of 8-12 hours.

    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld

    Technical Indicators

    Model Numbers:

    ZX-NZY01P (Base Kit with pin probe);

    ZX-NZY01T (Base Kit with testing clamp);

    ZX-NZY01C (Complete Kit with both pin probe and testing clamp);

    Applications:

    Test single Lead-Acid or Nickel-Cadmium cell or battery string (one by one after setting once).

    Cell types supported: 1.2V, 2V, 6V, 12V and other customized types up to 6000Ah.

    Voltage:0.000V—25V DC
    Resistance:0.001 mΩ--100mΩ
    Conductance:100 - 19,990 Siemens
    Test Data Storage:100,000 cells stored internally, unlimited with USB drive exportation
    Accuracy:

    Resistance/Conductance: 1%;

    Voltage: 0.15%;

    Voltmeter Resolution:1mV;
    User Programmable Functions:

    • Customized battery types;

    • Low voltage alarm setting;

    • High resistance alarm setting;

    • Test mode (push button/touch screen/autostart);

    Cable Options:

    • Pin probe

    • Test Clamp

    • Custom cables by quotation

    Power supply:• Li-ion battery (4000mAh), 8~12hours working time after full charge
    Display:272*480 pixel, 4.3”TFT Touch Screen LCD
    Data Transfer:USB via micro USB cable
    Operation Environment:0~40℃, 90% relative humidity, non-condensing
    Storage Temperature:-20~50℃
    Over Voltage Protection:

    • Auto-reset disconnect

    • Reverse polarity protected

    Housing Material:Acid resistant ABS plastic santoprene overmold
    Tester Dimensions:L186*W98*H40 mm
    Analyzer Weight:0.45KG

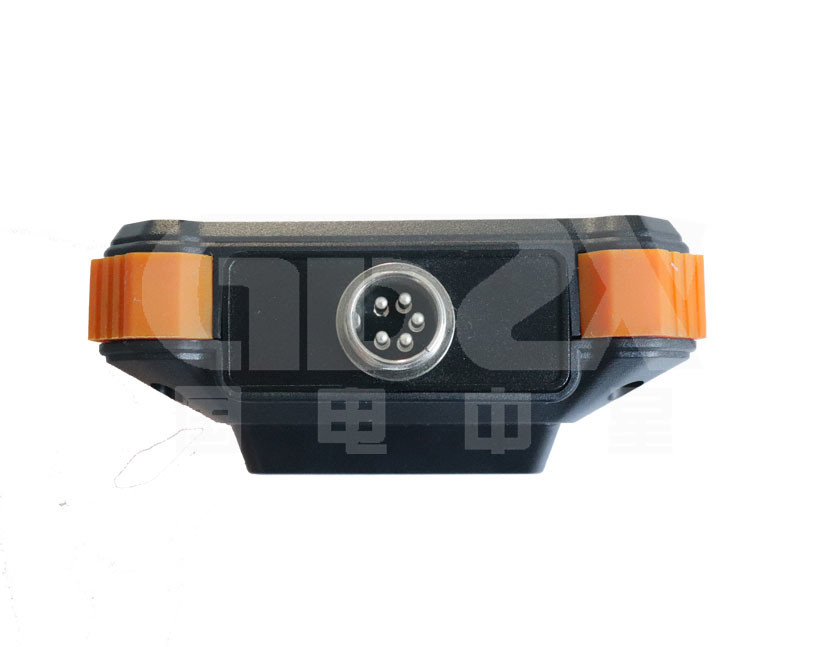

    Product pictures

    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld

    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital HandheldTFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld

    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld


    TFT Touch Screen LCD Display Battery Internal Resistance Tester Digital Handheld
