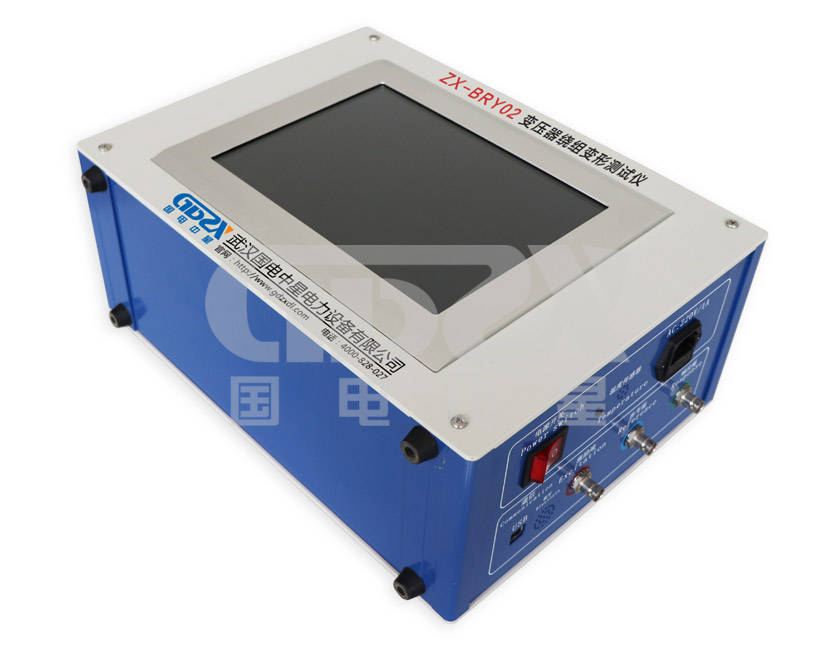

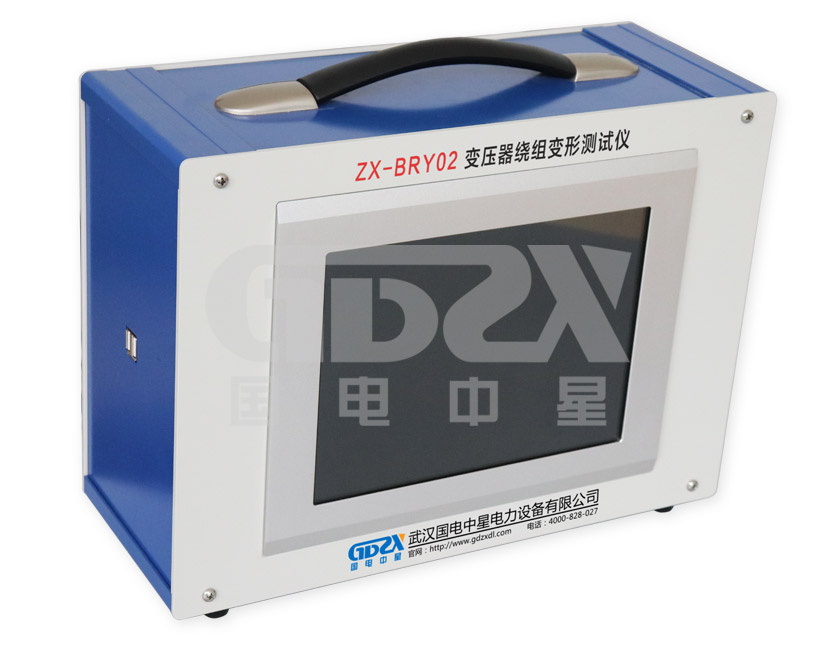

Digital Sweep Frequency Response Transformer Winding Deformation Tester

Product Description:

This transformer winding deformation tester is for testing of power transformer (voltage level at or above 6kV) and other transformers with special purpose. The power transformer is inevitably vulnerable to impulse of various fault short-circuit current or physical collision in the process of operation and transportation. The transformer windings may lose stability under the powerful electro-dynamic force exerted by such short-circuit current, which could result in permanent deformations such as local distortion, swell or dislocation and will severely affect safe operation of the transformer. Deformation of transformer windings can be measured with frequency response analysis method according to national standard DL/T911-2004 for electric power industry, i.e. detect amplitude-frequency response characteristics of each transformer winding and make vertical or horizontal comparison of the detection result to judge possible deformation of the transformer winding based on change of amplitude-frequency response characteristics.

Transformer winding deformation tester consists of measuring part and analysis software part. The measurement part is under high-speed microcontroller control, capable of signal generation and signal measurement. The measurement section is connected to the tablet via the wireless WIFI interface. It is not wired, easy to use, and can be connected to a tablet or laptop using wireless Bluetooth and USB.

Product Features:

1. In the test process only need to remove the transformer connection bus.
3. Sweeping frequency up to 10MHz, scanning interval can be 0.25kHz, 0.5kHz, 1kHz for multiple analysis
4. High intelligent, auto range adjustment, auto sampling frequency adjustment.
5. Windows platform, compatible with Win98 / 2000 / XP / Win7 / Win8 / Win10 system.
6. Historical curve comparison analysis, max 6 curves observation, auto analysis and diagnosis system
7. Auto save environment parameters and testing results, color printing function
8. Humanized software design, more convenient to use.
9. Auto complete the test after wiring, during the measurement check the historical curves or stop at any time
10. Measurement time less than 60 seconds for every phase, 10 minutes for whole transformer windings.

Two sweep methods:

Product Parameters:
