Brand Name : | GDZX |
Model Number : | ZX-JS |
Price : | $300.00 - $500.00 / Sets |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100 Set/Sets per Month |
Delivery Time : | 7~10 work days |

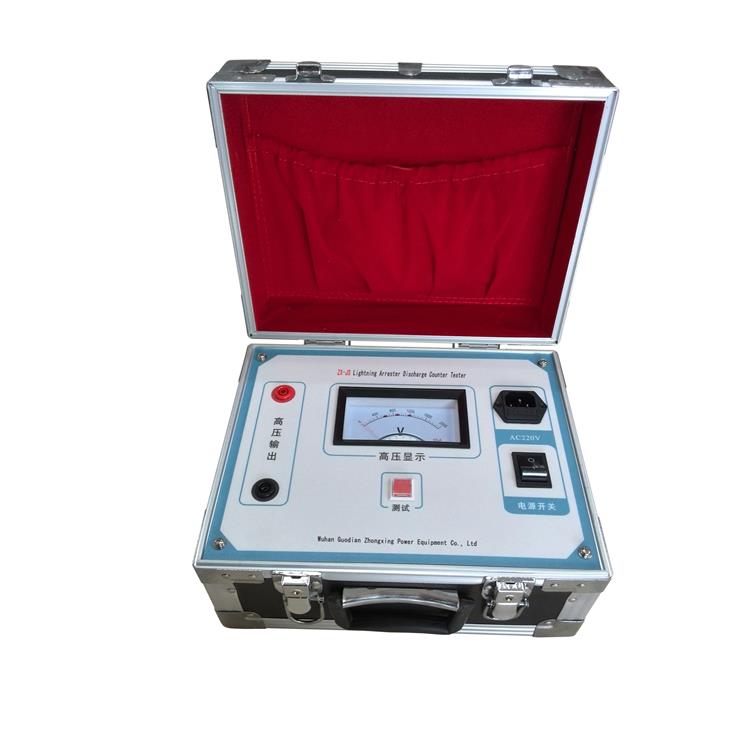

Zinc Oxide Lightning Surge Arrester Discharge Counter Tester Long Life Time
Introduction
This instrument is used for discharge action logger inspection and verification of discharge counter in valve-type arrester including silicon carbide common valve type (FZ and FS), silicon carbide magnetic blow valve-type (FCZ and FCD) and zinc oxide arrester.
Work environment
1. Ambient temperature: -10ºC~+50ºC
2. Relative humidity: ≤20~90%(at 40ºC)
3. Atmospheric pressure:86~106kPa
Technical Parameters
Discharge test voltage | > 2kV |
Charge time | < 1 minute |
Power supply | 220V±10% |
Frequency | 50±1Hz |
Power | < 30vA |
Dimension | 300x200x180mm |
Weight | 6KG |
![]() |
