Handheld Optical Digital Relay Protection Tester With USB Storage Device

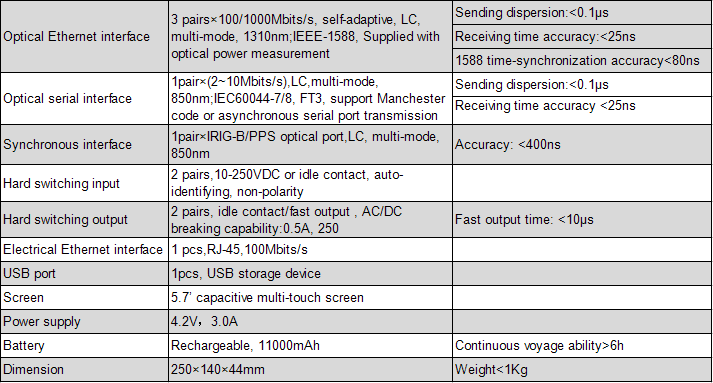

1. Capacitive mul-touch panel (5.7”), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours

2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection

3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive

4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing

5. Support connection with USB storage device, for data import/export

6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.

7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.

8. Graph demonstration of various electrical parameters, direct result reading

9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns

10. Small and portable, simple to use

About GDZX


Wuhan GDZX Power Equipment Co.,Ltd. is located in Wuhan, China, covering an area of 50 acres, with 6,000 m2 of factory space and 12,000 m2 of office buildings. We specialize in power testing equipment, engineering services, equipment commissioning, operations and maintenance testing, calibration, energy-saving and environmental protection equipment, and power sales. Our integrated solutions provide complete high-voltage testing and electrical inspection services to various power users.

Guodian Zhongxing integrates R&D, production, sales and service, and provides complete solutions for high voltage testing and electrical testing services for all types of power users. It is a well-known brand of electrical testing equipment in China.

The six major categories of products independently developed and produced by the company are mainly used in the handover test, preventive test, condition maintenance and intelligent substation detection of various voltage levels of power equipment in all links of the power system from power generation, transmission and distribution to distribution, factory inspection and annual inspection of primary equipment. Specifically divided into: high voltage/ultra-high voltage/ultra-high voltage AC and DC test equipment series, mobile power test intelligent integrated system, transmission and transformation test instrument, power metering/standard series, SF6 gas/oil test series, battery test series. All products have passed the inspection or type test of the "National Power Industry Electrical Equipment Quality Inspection and Testing Center"; and obtained the calibration certificate of the "National High Voltage Metering Station".
