Non Power Cable Fault Distance Locator Frequency Transmission Line Test Equipment

Introduction

Transmission Line Test System is a new generation power transmission line frequency parameter testing system. It equips with frequency conversion testing power, DFT Digital Filtering Technique, which eliminates strong interference from power frequency electric field, and ensures the safety of equipment, convenient, fast and accurate measurement.

Features

1. Quickly and accurately test the positive sequence capacitance, the positive sequence impedance, zero sequence capacitance, zero sequence impedance, also can measure the mutual inductance and coupling capacitance between lines ;

2. High Anti-interference ability, accurate and reliable measurement;

3. Easy operation, equipped with large LCD and American rotating mouse and micro printer

4. Simple wiring, only connecting with tested down leads to finish all line parameter measurement

5. High speed micro-controller as inner core, integrated structure

6. Fast testing process, one sequence parameter testing time is 1 min

7. Supplied with three groups different frequency power supply for selection: 42.5Hz/57.5Hz, 45Hz/55Hz, 47.5Hz/52.5Hz, easily isolate the power frequency and noise wave to ensure high precision measurement of small signals.

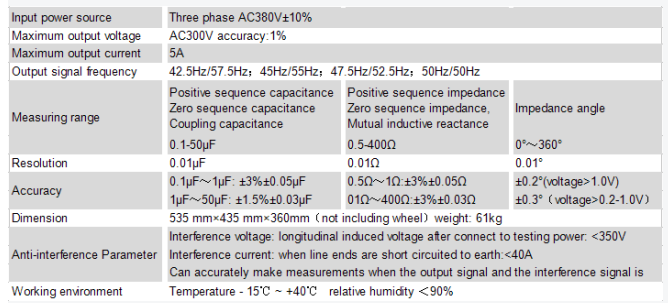

Parameters

About GDZX


Wuhan GDZX Power Equipment Co.,Ltd. is located in Wuhan, China, covering an area of 50 acres, with 6,000 m2 of factory space and 12,000 m2 of office buildings. We specialize in power testing equipment, engineering services, equipment commissioning, operations and maintenance testing, calibration, energy-saving and environmental protection equipment, and power sales. Our integrated solutions provide complete high-voltage testing and electrical inspection services to various power users.

Guodian Zhongxing integrates R&D, production, sales and service, and provides complete solutions for high voltage testing and electrical testing services for all types of power users. It is a well-known brand of electrical testing equipment in China.

The six major categories of products independently developed and produced by the company are mainly used in the handover test, preventive test, condition maintenance and intelligent substation detection of various voltage levels of power equipment in all links of the power system from power generation, transmission and distribution to distribution, factory inspection and annual inspection of primary equipment. Specifically divided into: high voltage/ultra-high voltage/ultra-high voltage AC and DC test equipment series, mobile power test intelligent integrated system, transmission and transformation test instrument, power metering/standard series, SF6 gas/oil test series, battery test series. All products have passed the inspection or type test of the "National Power Industry Electrical Equipment Quality Inspection and Testing Center"; and obtained the calibration certificate of the "National High Voltage Metering Station".
