    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZX5050 Series
    Certification : ISO9001
    Price : $3900.00 - $5500.00 / Sets
    Payment Terms : L/C, T/T
    Supply Ability : 100Sets / per Month
    Delivery Time : 8-15 work days
    • Product Details
    • Company Profile

    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    ZX5050 Three-Phase Programmable Testing Power Supply

    Product introduction

    The ZX5050 three-phase programmable testing power supply adopts an integrated meter source structure, using an embedded system, a large screen TFT color LCD display, touch screen, CPLD chip, and a series of advanced devices such as high-precision A/D, D/A, etc. It is small in size and light in weight, and can be widely used in the electricity metering industry, electricity laboratories, and other related departments, making it easy to carry and use on site.

    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Features

    1. Touch screen control panel and facial mask button are used to display large amount of information, which is simple and convenient to use.

    2. Embedded energy meter, displaying parameters such as voltage, current, frequency, phase, active power, reactive power, apparent power, power factor, etc.

    3. It has multiple protection functions: current limiting protection, power amplifier protection, voltage short circuit protection, current open circuit protection, power amplifier thermal protection, and other functions.

    4. Intelligent gear: Within the allowable output range of the instrument, users can freely set the rated voltage and current gear of each three-phase voltage and current. The test points and adjustment details of voltage and current refer to the rated gear value set by the user, making it convenient for users to operate.

    5. Rich voltage, current, and phase test points for easy operation.

    6. Equipped with RS232 serial port for easy computer control and software upgrade.

    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Technical Indicators

    1. Power output

    1) Voltage: 10~450V (internal voltage range 57.7, 100, 220V, 380V), output power 20VA.

    2) Current: 0.001-20A (internal current range 0.2, 1, 5, 20A), output power 20VA. (Current 0-100A can be customized)

    3) Output frequency: 45-65Hz.

    4) Output phase: 0-359.99 °.

    5) Stability: voltage and current 0.02%. (2 minutes)

    6) Distortion: Voltage and current distortion not exceeding 0.5% (non capacitive load)

    2. Output and display accuracy

    Project: Resolution

    Voltage: 4 significant digits

    Frequency: 0.001Hz

    Phase: 0.01 °

    Power factor: 0.001

    Active power: 4 significant digits

    Reactive power: 4 significant digits

    Apparent power: 4 significant digits

    Project Output and Display Accuracy
    Voltage 0.50%
    Current 0.50%
    Frequency 0.02Hz
    Phase 0.5 °
    Power factor 0.50%
    Active power 0.50%
    Reactive power 1%
    Apparent power 0.50%
    Project Resolution
    Voltage 4 significant digits
    Current 4 significant digits
    Frequency 0.001Hz
    Phase 0.01 °
    Power factor 0.001
    Active power 4 significant digits
    Reactive power 4 significant digits
    Apparent power 4 significant digits

    3. Common output regulation test points

    1) Voltage test points: 80%, 90%, 100%, 110%, 120%.

    2) Current test points: 1%, 5%, 10%, 20%, 50%, 100%, 120%.

    3) Phase test points: 0.5L, 0.86L, 1.0, 0.86C, 0.5C.

    4) The amplitude of three-phase voltage and current can be adjusted separately, with adjustment fineness of 10%, 1%, 0.1%, and 0.01%; Adjust the range to 125%.

    5) The phase and power factor of three-phase voltage and current can also be adjusted in phases, with adjustment fineness of 10 °, 1 °, 0.1 °, and 0.01 °, respectively.

    6) UB and UC can also adjust the phase of UA separately.

    7) The adjustment of frequency is achieved by adjusting the three-phase voltage and current together, with adjustment fineness of 5Hz, 1Hz, 0.1Hz, and 0.01Hz, respectively.

    4. Power supply: single-phase AC 182-262V, 50/60Hz.

    5. External size: 500 × six hundred × 178mm

    6. Weight: 27Kg.

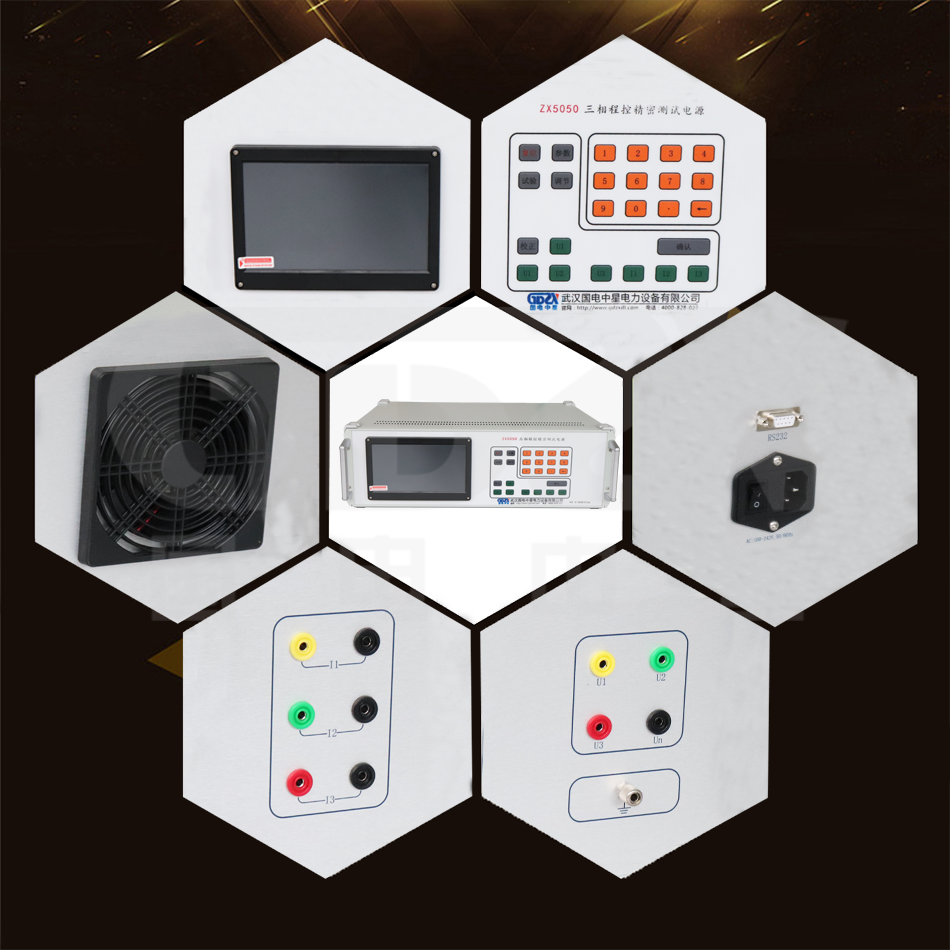

    Product pictures

    High Precise Three Phase Electrical Power Calibrator Programmable Testing SourceHigh Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    High Precise Three Phase Electrical Power Calibrator Programmable Testing SourceHigh Precise Three Phase Electrical Power Calibrator Programmable Testing SourceHigh Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    COMPANY PROFILE
    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source
    About GDZX
    Wuhan GDZX Power Equipment Co.,Ltd. is located in Wuhan, China, covering an area of 50 acres, with 6,000 m2 of factory space and 12,000 m2 of office buildings. We specialize in power testing equipment, engineering services, equipment commissioning, operations and maintenance testing, calibration, energy-saving and environmental protection equipment, and power sales. Our integrated solutions provide complete high-voltage testing and electrical inspection services to various power users.
    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    ODM for Different Parameter

    ODEM for different customer project requirement
    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Assebley and Debug

    To ensure the products can reach customer's equipment technical specification.
    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Packing and Shipping

    Avoid damage during transportation, and ensure that you receive the product complete
    SERVICE AND WARRANTY
    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    1 year warranty, 3 years repair, lifetime maintenance

    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Online and offline technical training

    High Precise Three Phase Electrical Power Calibrator Programmable Testing Source

    Provide test report and videro
