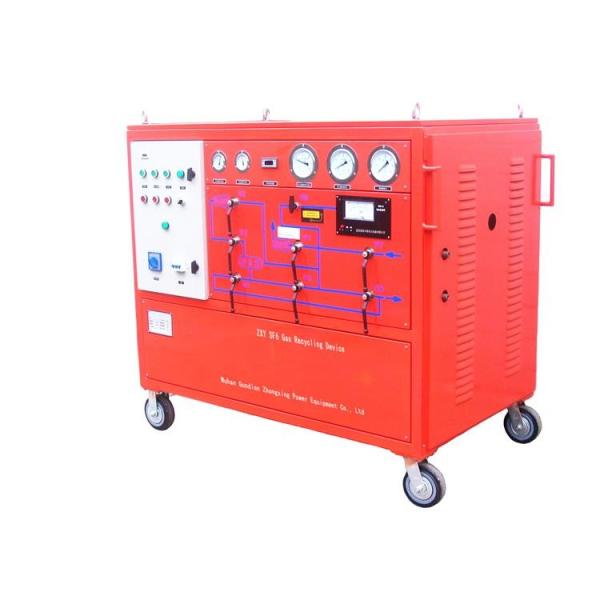

For Manufacturing And Maintenance SF6 Gas Recycling And Filling
Machine
Features
1. Recycling: Recycling initial pressure:≤0.8MPa, Recycling final
pressure: ≤50KPa
Recycling time: 1m3 SF6 gas From initial pressure 0.8MPa to final
50KPa, time <2.5 hours
2. Filling: 1m3 SF6 gas From initial pressure 133Pa to 0.8MPa,
filling time <0.8 hours
3. Vacuuming
Instrument ultimate vacuum: ≤10 Pa
1m3 SF6 gas From initial pressure 0.1MPa to vacuum 133Pa, time <
1 hour
4. Storing:
Storing capacity: 0.05m3, Nominal liquid storage: 50kg
Maximum storing pressure: 3.8 MPa
5. Purifying: for SF6 gas with moisture content less than 1000PPM
(volume ratio),
the moisture content can be down to 60PPM(weight ratio) after one
time purifying, oil content less than 10PPM (weight ratio)
6. Annual leakage rate: ≤1% Nominal storing capacity
7. Noise SPL(sound pressure level) ≤ 75dB(A)
8. Working environment temperature: -10°- 40℃
9. Power ≤5KW
10. Power supply: AC 3P5W mode 50HZ 380V±10%
11. Weight: about 600 kg
12. Dimension (L*W*H) 1450×810×1200mm
Technical Indicators
| Model list and Normal configuration ( can be customized) |
| Name | Model | Main configuration |
| SF6 gas recycling equipment | ZX7Y-4-40 | Recycling speed: 7m3/h,vacuuming speed: 4L/S,Storage tank capacity
20kg, 2 pipelines |
| SF6 gas recycling equipment | ZX7Y-15-50 | Recycling speed:7m3/h,vacuuming speed:15L/S,Storage tank capacity:
50kg, 2 pipelines |
| SF6 gas recycling equipment | ZX12Y-54-100 | Recycling speed:12m3/h,vacuuming speed: 54L/S,Storage tank capacity
100kg, 2 pipelines |
| SF6 gas recycling equipment | ZX10Y-15-150 | Recycling speed:10m3/h,vacuuming speed: 15L/S,Storage tank capacity
150kg, 2 pipelines |
| SF6 gas recycling equipment | ZX19Y-54-300 | Recycling speed:19m3/h,vacuuming speed: 54L/S,Storage tank capacity
300kg, 2 pipelines |
| SF6 vacuuming and refilling equipment | ZX2015A | China vacuum pump 54m3, digital vacuum meter, vacuum recover self
restarting function |
| SF6 vacuuming and refilling equipment | ZX2018A | German leybold Vacuum 65m3, digital vacuum meter, vacuum up self
restarting function |
| SF6 vacuuming and refilling equipment | ZX2085A | China vacuum pump 54m3 plus Roots vacuum pump 70L/S, digital vacuum
meter, with function of auto restarting vacuum degree recovery |
