Product Introduction :
The ZX2571 Ground Resistance Tester is a commonly used instrument
for inspecting and measuring grounding resistance. It features an
LCD gray-white screen with backlight display and microprocessor
technology, meeting the requirements for two-wire and three-wire
resistance testing. It is suitable for applications in
telecommunications, electric power, meteorology, server rooms, oil
fields, power distribution lines, transmission line towers, gas
stations, factory grounding systems, lightning rods, and more.
The instrument is characterized by high accuracy, speed,
simplicity, and reliability. Controlled by a microprocessor, it
automatically detects interface connection status, ground network
interference voltage, interference frequency, and supports testing
of auxiliary grounding electrode resistance. It can store up to 500
sets of data.
Measurement ranges:
- Resistance: 0.01Ω to 3000Ω
- Ground Voltage: 0.01V to 600.0V.
Performance Features :
1. Equipped with an LCD gray-white backlit display and
microprocessor technology, it fulfills the requirements for both
two-wire and three-wire resistance testing.
2. Controlled by a microprocessor, the instrument automatically
detects interface connection status, ground network interference
voltage and frequency, and supports auxiliary grounding electrode
resistance testing.
3. Capable of storing 500 sets of data. Measurement ranges:
- Resistance: 0.01Ω to 3000Ω
- Ground Voltage: 0.01V to 600.0V
4. Delivers precise, rapid, straightforward, and stable/reliable
testing performance.
(Note: Maintains consistency with previous translations in
technical terms like "ground resistance tester," "microprocessor,"
and formatting styles for ranges. Structural parallelism is
prioritized for clarity, and key specifications are highlighted to
align with technical documentation standards.)
Technical Indicators:
| Ground resistance range | 0.01Ω～3000Ω Accuracy ±1.5%rdg±5dgt |
| Ground resistance resolution | 0.01Ω |
| Ground voltage range | 0.01～600V AC Accuracy ±1.5%rdg±3dgt |
| Ground voltage resolution | 0.01V |
| Benchmark conditions | 23℃±5℃, below 75%rh |
| (Auxiliary grounding resistance 100Ω±5%, ground voltage <10V) |
| Function | Ground resistance measurement, ground voltage measurement, low
value resistance measurement |
| power supply | DC 6V 1.5V LR14Battery |
| Backlight | Controllable gray-white screen backlight, suitable for use in dim
places |
| Measurement method | Precision three-wire measurement, simple two-wire measurement |
| Measurement method | Ground resistance: Rated current-variable method, test current >
20mA (sine wave), 128Hz; Ground voltage: average rectifier |
| Line resistance verification | Avoid errors caused by not being completely inserted into the
instrument interface or poor contact or user replacement of
extended test lines, so that the ground resistance measurement is
more accurate. |
| Display mode | 4-digit LCD display, off-white screen backlight |
| Measurement instructions | LED flashing indicator during measurement, LCD countdown display |
| Measurement time | Ground voltage: about 2 times/second; ground resistance: about 5
seconds/second |
| Number of measurements | More than 5000 times |
| Line voltage | Measurement of ground voltage: AC below 600V |
| Data storage | 500 groups, flashing "FULL" symbol indicates that the storage is
full |
| Data review | Data reference function: "MR" symbol display |
| Working temperature and humidity | -10℃～40℃; below 80%rh |
| Storage temperature and humidity | -20℃~60℃; below 70%rh |
| Overload protection | Grounding resistance: AC 280V/3 seconds between EH and ES ports |
| Insulation resistor | 10MΩ or above (500V between the circuit and the housing) |
| Pressure resistant | AC 3700V/rms (between the circuit and the housing) |
| Electromagnetic characteristics | IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m |
| Suitable for safety regulations | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution,
etc. 2, CAT Ⅲ 300V |
| Range and accuracy | Measurement function | Range | Accuracy | Resolution |
| Ground resistance | 0.01Ω～30.00Ω | ±1.5%rdg±5dgt | 0.01Ω |
| 30.1Ω～300Ω | (Auxiliary grounding resistance 100Ω±5%, ground voltage <10V) | 0.1Ω |
| 301Ω～3000Ω |
| 1Ω |
| Ground voltage | 0.01～10.00V AC | ±1.5%rdg±3dgt | 0.01V |
| 10.1～100.0V | 0.1V |
| 101～600V | 1V |

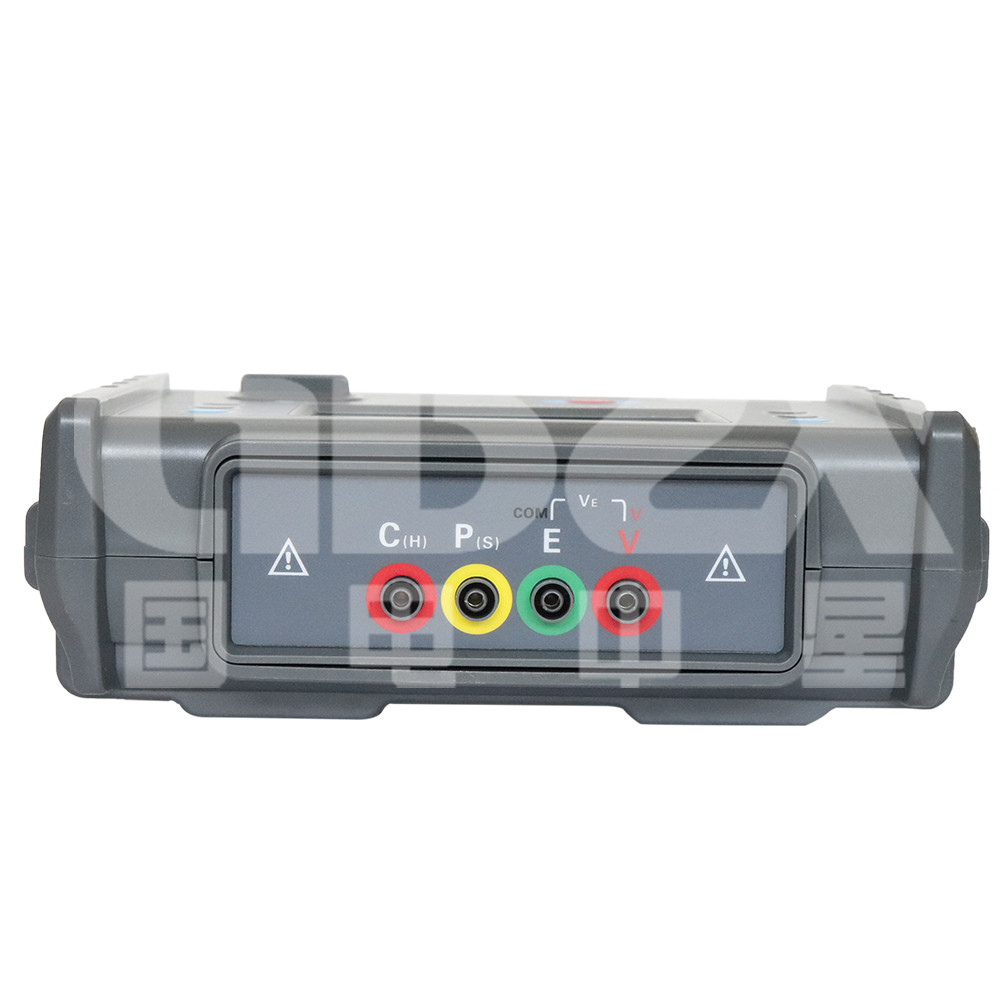

Product picture
