Introduction:
The FRB-100kVC intelligent AC/DC high-voltage divider is an RC
equipotential shielding voltage divider-type high-voltage
measurement device. It is primarily used for measuring pulse high
voltage, lightning impulse high voltage, and power-frequency high
voltage. Serving as the preferred alternative to conventional
high-voltage AC/DC dividers, it features user-friendly operation,
intuitive display, high accuracy, compact size, and lightweight
design. This instrument is ideally suited for power plants,
substations, high-voltage electrical equipment manufacturers, and
high-voltage laboratories as an optimal solution for high-voltage
measurement applications.
Features:
1. This instrument is connected to the high-voltage measurement end
through the instrument line, which can achieve clear readings from
a long distance, which is safe and convenient to use.
2. The instrument has high input impedance and good linearity.
Special shielding technology is used to reduce the impact of high
voltage on the display value, thereby achieving high stability and
high linearity.
3. Use imported filling materials to make the structure smaller,
lighter, higher reliability, and minimize the internal local
discharge.
4. Small size, light weight, easy to carry, bringing great
convenience to the inspection work on site construction sites.
Product parameters:
1. Product standard: DL/T846.1-2004
2. AC measurement method: true RV measurement, peak value
(optional), mean (optional)
3. Voltage level: 100kV
4. Resolution: 0.01
5. Accuracy: AC: 1.0% reading ±0.1; DC: 0.5% reading ±0.1
6. Insulating medium: dry dielectric material
7. Environmental conditions: Temperature: -10℃~40℃; Humidity:
≤70%RH
8. Partition voltage ratio: N=1000:1

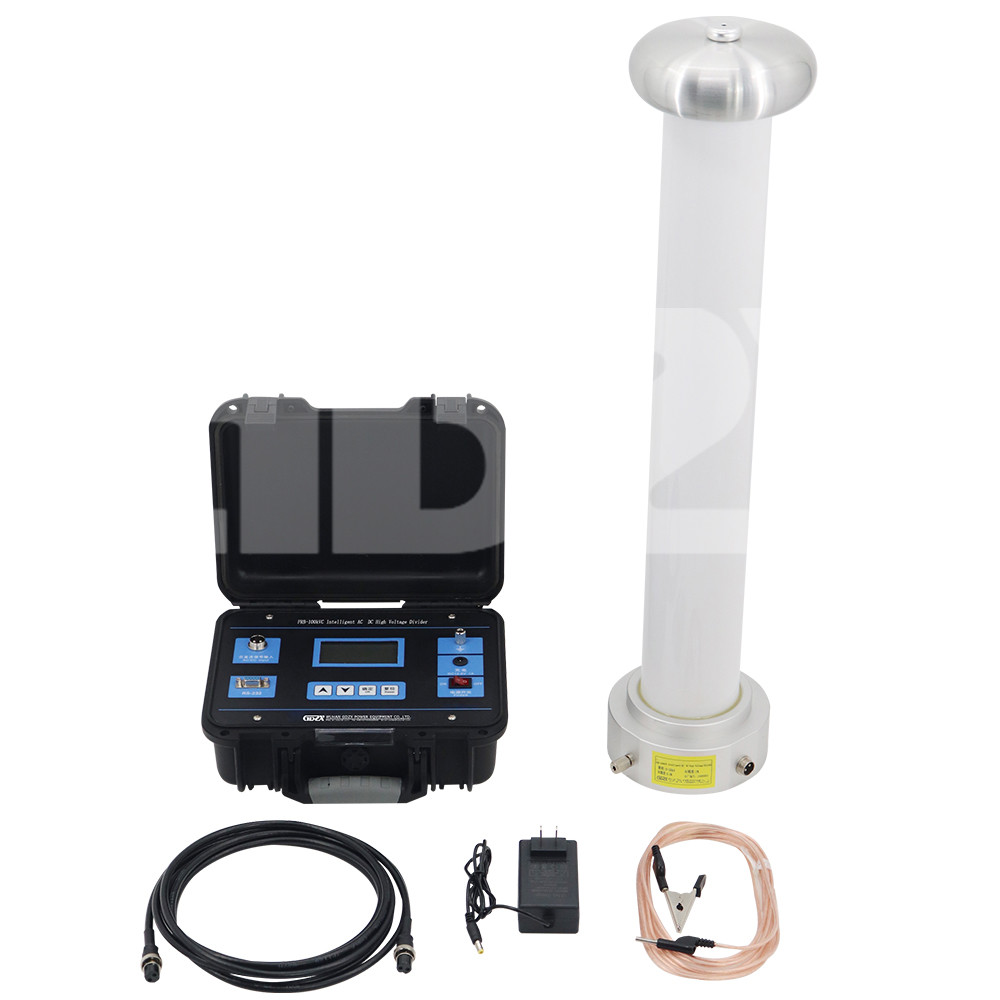

Product picture:
