Introduction:
ZXPD-400T local LED detector,It can be widely used in the local discharge detection of
high-voltage switch cabinets, ring cabinets, voltage/current
transformers, transformers (including dry transformers), GIS,
overhead lines, cables and other equipment in power systems.
Scope of application:
1. Used for ultrasonic and ground wave testing of switch cabinets.
Features:
1. The humanized human-machine interface is convenient for data
management of different devices;
2. Built-in ultrasonic sensors and transient ground voltage
(hereinafter referred to as TEV) sensors, which can be connected to
external transformers, GIS, overhead lines, cables and other
special sensors;
3. Non-invasive detection method is adopted, and there is no need
to cut off power during the test, and no additional high-voltage
source is required.
4. The test bandwidth range is 30kHz~2.0GHz, which is suitable for
detection principles in various frequency bands;
5. The additional infrared thermal imager can convert this part of
infrared radiation that is invisible to the naked eye on the
surface of an object into a visible image. Infrared thermal imaging
is not affected by visible light, and has the advantages of
non-contact temperature measurement, smoke and mist penetration,
and is very suitable for temperature detection of electrical
equipment.
6. The image color and hot spot tracking and display functions
displayed on the screen can be used to determine the heat and
faulty locations in a preliminary manner, so as to confirm the
problem efficiently and accurately.
Product parameters:
| Earth radio wave parameters |
| Measurement range | 0～70dBmV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum pulse per cycle | 1400 |
| Measurement band | 3～100MHz |
| Contact ultrasonic parameters |
| Measurement range | -6dBμV 至 68dBμV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Frequency range | 20～200 kHz |
| hardware |
| shell | ABS |
| Host size | 248*165*55(长*宽*厚,mm) |
| show | 7-inch capacitive touch screen, resolution 1280*800 |
| Sampling accuracy | 12bit |
| Synchronization method | Internal synchronization, external synchronization |
| Connector | USB interface (both charger input) external sensor input interface,
wifi, network port, Bluetooth |
| SD card | Standard 16G~64G |
| Built-in battery | 3.7V/5000mAh lithium battery |
| Working hours | About 6 hours |
| charger | 100～240VAC,50/60Hz |
| Use temperature | -35℃～50℃ |
| humidity | 30%～60% |
| Volume, weight | 1.3kg |

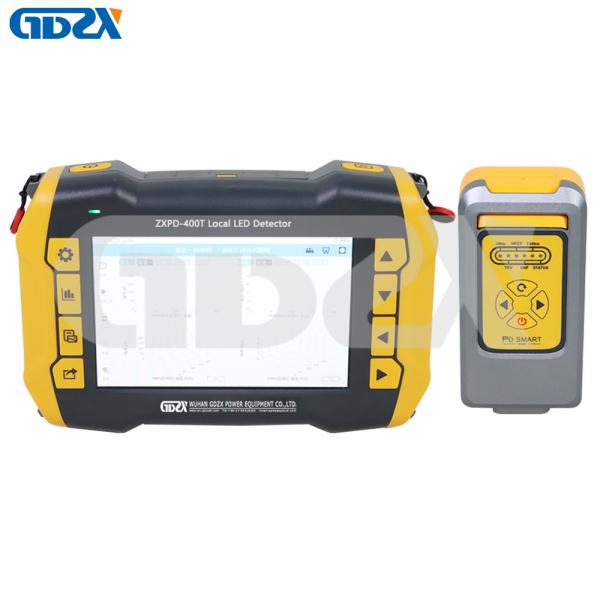

Product Pictures:
