Introduction:
ZXJYD-IIY insulating oil dielectric strength tester is a
high-accuracy, fully digital industrial instrument developed by all
scientific research and technical personnel of our company, based
on the relevant standards and regulations of insulating oil
testing, and leverages its own advantages. After many on-site tests
and long-term unremitting efforts, it has carefully developed and
developed high-accuracy, fully digital industrial instruments. The
instrument is easy to operate and has a beautiful and elegant
shape. Since fully automatic digital microcomputer control is
adopted, the measurement accuracy is high, the anti-interference
ability is strong, and the safety and reliability are safe and
reliable.
Features:
1. The instrument adopts a large-capacity microcontroller to work
stably and reliably.
2. The instrument has temperature, humidity and clock display
functions, and can customize infrared oil temperature measurement.
3. The instrument has a wide range of watchdog circuit to eliminate
crashes;
4. A variety of standard choices, the instrument program is
equipped with GB/T507-1986, GB/T507-2002, DL429.9, IEC156 and
self-programming operations, which can adapt to a variety of
choices from different users;
5. The instrument oil cup is made of special glass and polymer
materials, finely processed to eliminate oil leakage and corrosion;
6. The instrument's unique high-voltage end sampling design allows
the test value to enter the A/D converter directly, avoiding errors
caused in the analog circuit, and making the measurement results
more accurate;
7. The instrument has protection functions such as overcurrent,
overvoltage, short circuit, etc., and has extremely strong
anti-interference ability and good electromagnetic compatibility;
8. It can be switched at will in Chinese and English to meet any
customer needs;
9. The instrument itself has data analysis function to assist staff
in determining the quality of the oil; 10. USB or RS232 data
transmission (optional);
Product parameters:
| Booster Capacity | 1.5 kVA |
| Boost speed | 0.5kV/s-5.0kV/s (increment every 0.5) 10 levels are available |
| Output voltage | 0～100 kV (optional) |
| Voltage Accuracy | (2% reading + 2 words) |
| Power distortion rate | ＜1% |
| Electrode gap | Standard 2.5 mm |
| Number of tests | 6 times (1-9 times are optional) |
| Rest time | 900S (0-9000 S optional) |
| Interval still time | 300S (0-900S optional) |
| Stirring time | 15S (0-250S optional) |
| External dimensions | 420mm in length; 360mm in width; 360mm in height |
| Instrument weight | 36kg |
| Ambient temperature | 0～40℃ |
| Relative humidity | ≤85% |
| Working power supply | AC 220V(1 ± 10%) |
| Power supply frequency | 50 Hz (1 ± 10%) |
| Power consumption | ＜200 W
|

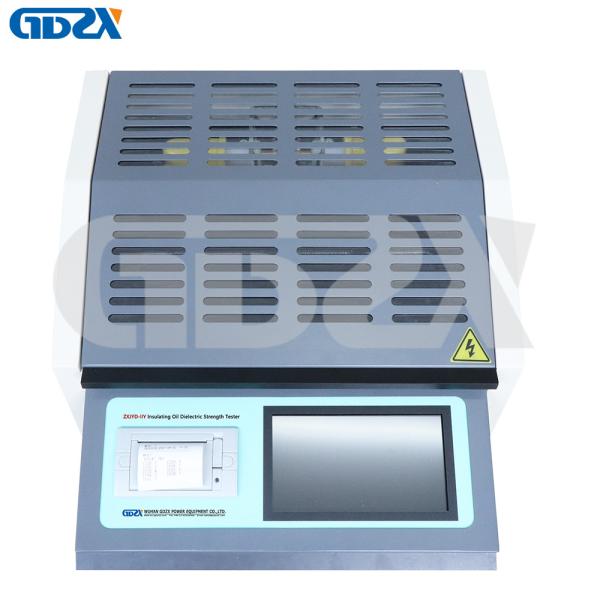

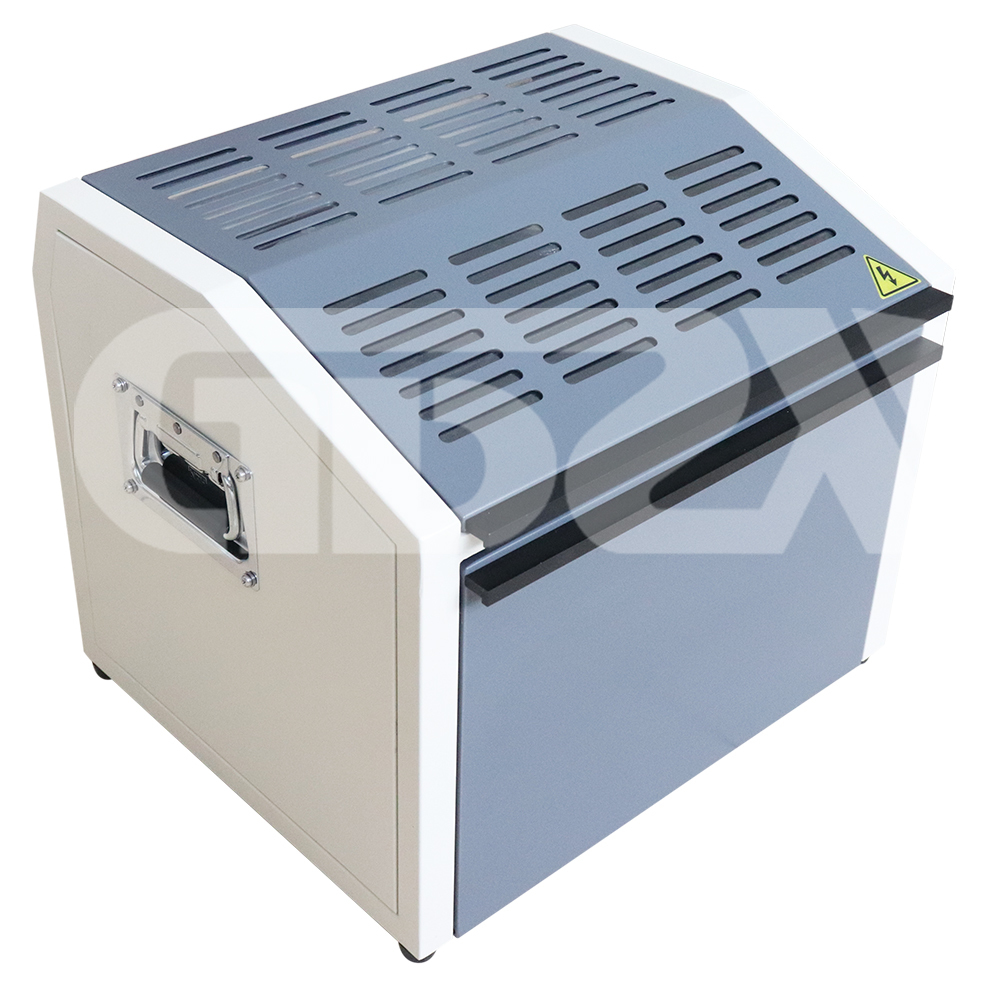

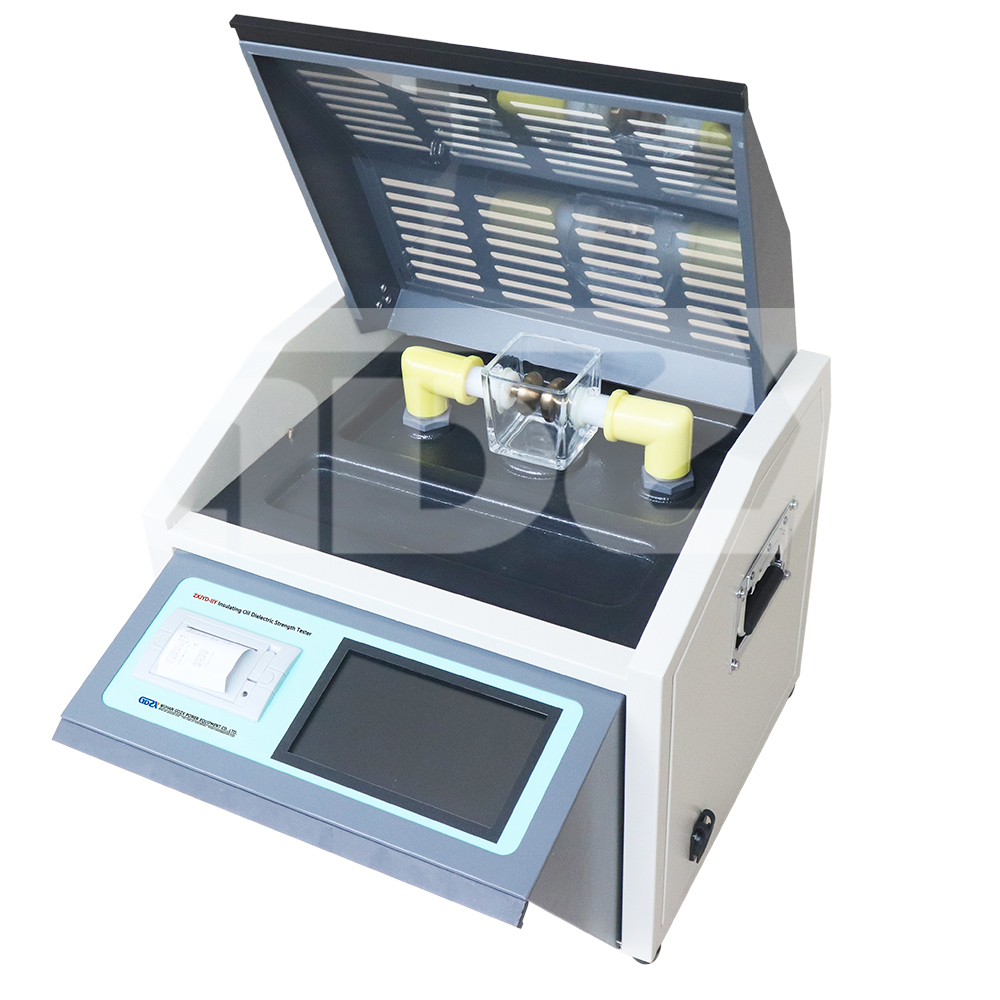

Product Pictures:
