Product Introduction:
WL-VS SF6 handheld micro-water meter is a modern, high-level and
intelligent measuring instrument independently developed by our
company. This instrument has advantages that are incomparable to
similar instruments in terms of measurement principle, degree of
automation, and ease of use. It adopts European standard technology
to ensure the accuracy and reliability of data. This instrument has
a wide measurement range, fast response time, short measurement
period, intuitive display and easy operation. This instrument is
applicable to a wide range of fields, including humidity
measurement of air, nitrogen, inert gas and any gas without
corrosive media. It is especially suitable for humidity measurement
of SF6 gas. It can be used by electric power, petrochemical,
metallurgy, environmental protection, scientific research
institutes and other departments, and has a high
cost-effectiveness.
Performance Features:
1. Self-calibration: The sensor probe can automatically calibrate
the zero point, automatically eliminate system errors introduced by
zero point and drift, ensuring the accuracy of each measurement,
and avoiding the cumbersomeness of annual calibration.
2. Quick air saving: After turning on the machine and entering the
measurement state, the measurement time of microwater separation of
each SF6 gas is about 2 minutes.
3. Self-locking connector: It adopts original imported self-locking
connector from Germany, which is safe and reliable, and has no air
leakage.
4. Data storage: adopts a large capacity design and can store 1,000
sets of test data.
5. Curve function: Large screen curves show the dew point
measurement process.
6. Clear display: The color LCD screen directly displays dew point,
tiny water (ppm), ambient temperature, time and date.
7. Printing function: External micro thermal printer.
8. USB interface: It can import stored data into a USB drive and
process data on the computer.
9. Built-in power supply: rechargeable lithium battery, charge for
2 hours, and can work continuously for 10 hours at a time.
Technical parameters:
Dew Point | Measurement range | -80℃～+20℃(0.04ppm-23700ppm) |
Measurement accuracy | ±1.0℃(-60℃～+20℃) ±2.0℃(-80℃～-60℃) |
Response time (+20℃) | for -60℃~ +20℃:63% needs 5 seconds, 90% needs 45 seconds for +20℃~ -60℃:63% needs 10 seconds, 90% needs 240 seconds |
Ambient Temperature | -10℃～+60℃ |
Ambient Humidity | 0～100% RH |
Display | 4.3 inch color touch screen |
Power Display | Percentage of battery status |
Date Display | Year, month, day |
Time Display | Hour, minute, second |
Printing Function | External micro thermal printer |
Power Supply | AC 220V |
Built-in rechargeable battery |
Battery Performance | Charging time: 2 hours; working time more than 10 hours |
Weight | 2kg |
Dimension | 250*100*300mm |
Operation Temperature | -40℃～+60℃ |
Storage Temperature | -40℃～+80℃ |

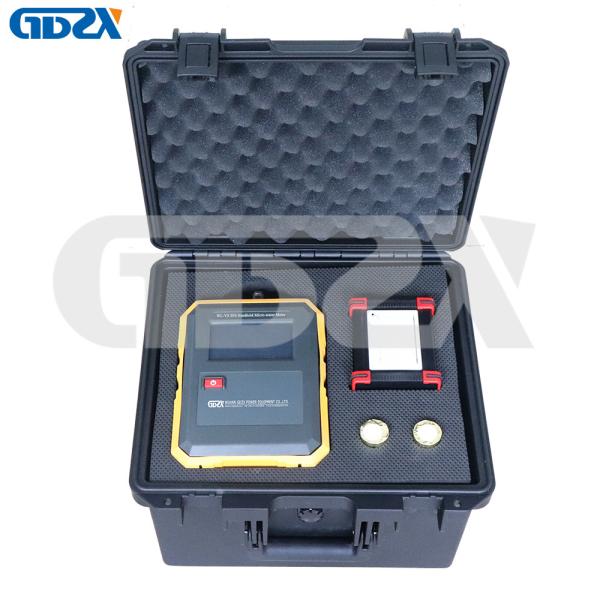

Product Pictures:
